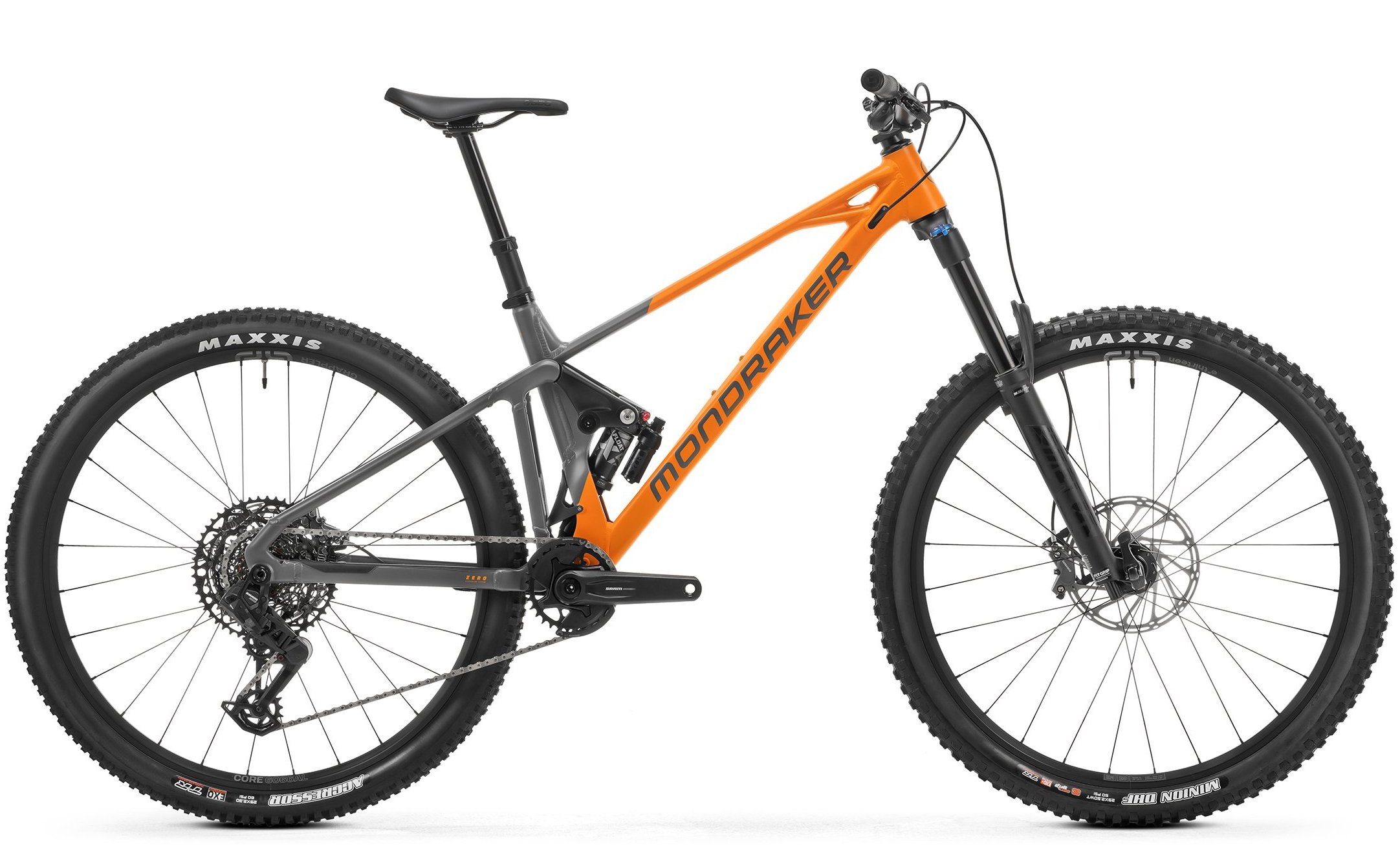

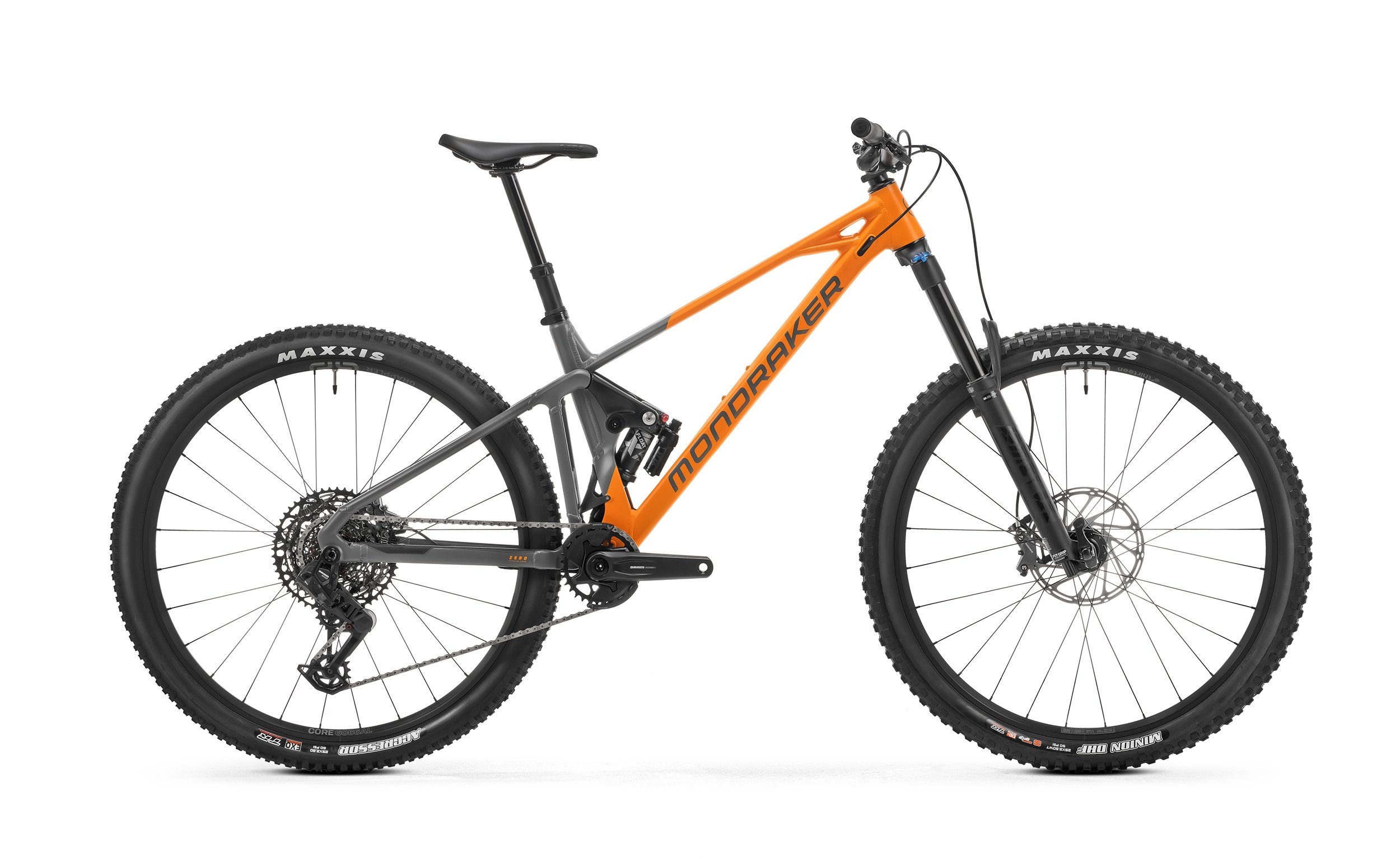

Mondraker FOXY R - Atomic Orange
“Ön Sipariş” kategorisinden sipariş verilen bisikletlerin teslim süresi 4-6 hafta arasıdır.
Detaylı bilgi ve merak ettikleriniz için arayabilir, mesaj atabilir ya da mağazamızı ziyaret edebilirsiniz.
-İletişim: 0543 377 74 87
-Konum: Mithatpaşa Mh Abdulhamit Han Cad No:133A Kemerburgaz/Eyüpsultan/İstanbul
“Ön Sipariş” kategorisinden sipariş verilen bisikletlerin teslim süresi 4-6 hafta arasıdır.
Detaylı bilgi ve merak ettikleriniz için arayabilir, mesaj atabilir ya da mağazamızı ziyaret edebilirsiniz.
-İletişim: 0543 377 74 87
-Konum: Mithatpaşa Mh Abdulhamit Han Cad No:133A Kemerburgaz/Eyüpsultan/İstanbul
FrameFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes
S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Beehive, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake
Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims
e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hube*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear tireMaxxis Aggressor 29x2.3 WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CranksetSram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Rings32T, CNC-machined alloy, T-Type
Bottom bracketSram DUB BSA, sealed bearings, 73mm, wide
ChainSram GX Eagle T-Type, 12s, Powerlock
Rear derrailleurSram S1000 Eagle AXS T-Type, 12s
Shift leversSram Eagle AXS Pod, 12s
Casette
Sram XS-1270, 10-52T, T-Type 12s
Weight16,5 kg
