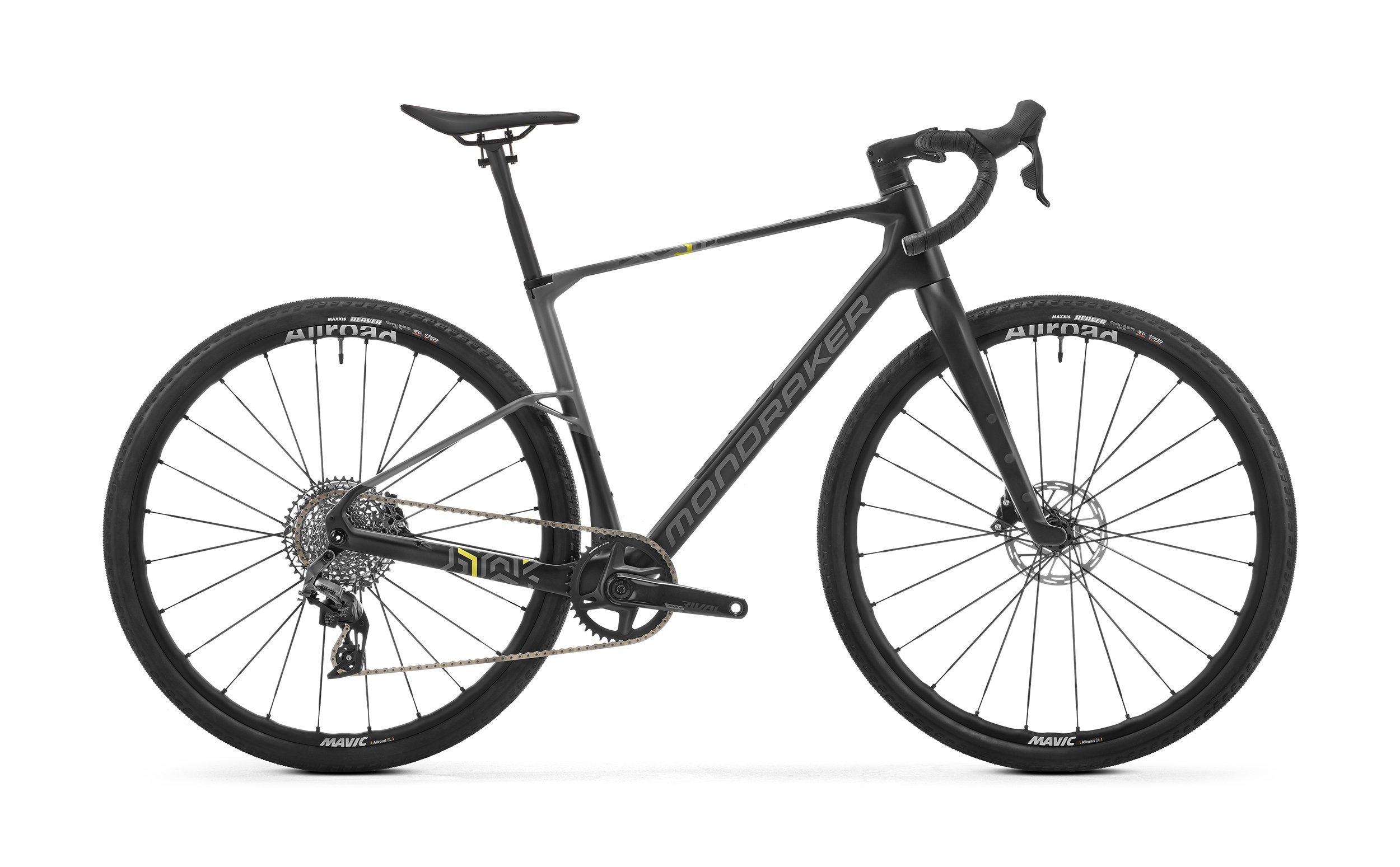

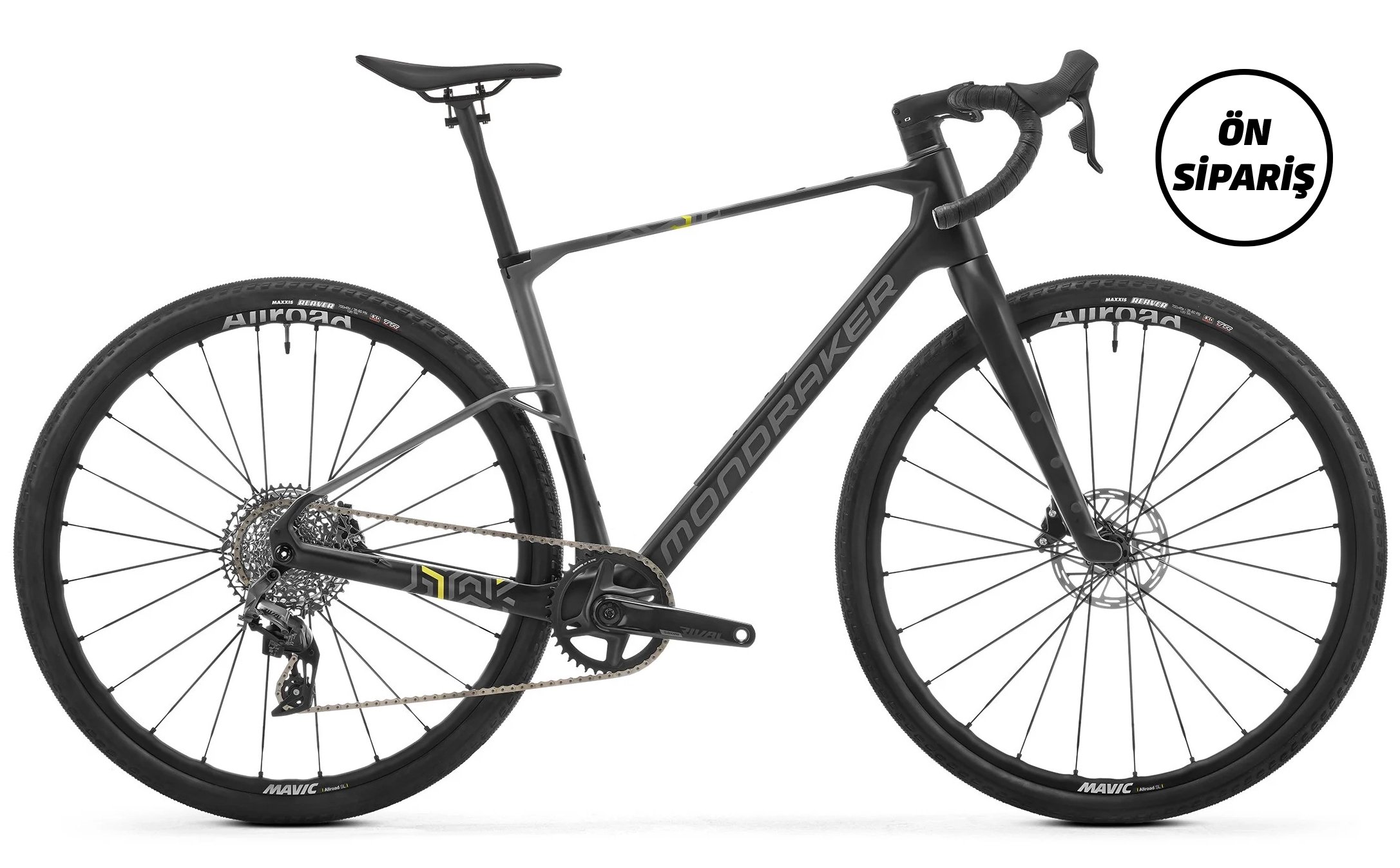

Mondraker ARID CARBON R - Black

Frame

Sizes

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

Stem

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar

OnOff S9 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm

Grips

OnOff HEX Bartape

Seatpost

Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm

Saddle

FIZIK Terra Argo X5 140mm

Front brake

Rear brake

Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Brake lever

Sram Rival, contact point adjustment, tooled reach adjust, plastic levers

Rims

Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes

Spokes

Mavic Steel double butted flat spokes

Front hub

Mavic, 12x100mm, IS 6 bolts

Rear hub

Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub

Front tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Crankset

Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5

Rings

Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,

Bottom bracket

Sram DUB T47 BSA, sealed bearings, 85,5mm

Chain

Sram Rival, 12s, Powerlock

Rear derrailleur

Sram Rival XPLR Etap AXS, 12s

Shift levers

Sram Rival Etap AXS 12s,

Casette

Sram XG-1251 10-44T, 12s

Weight
