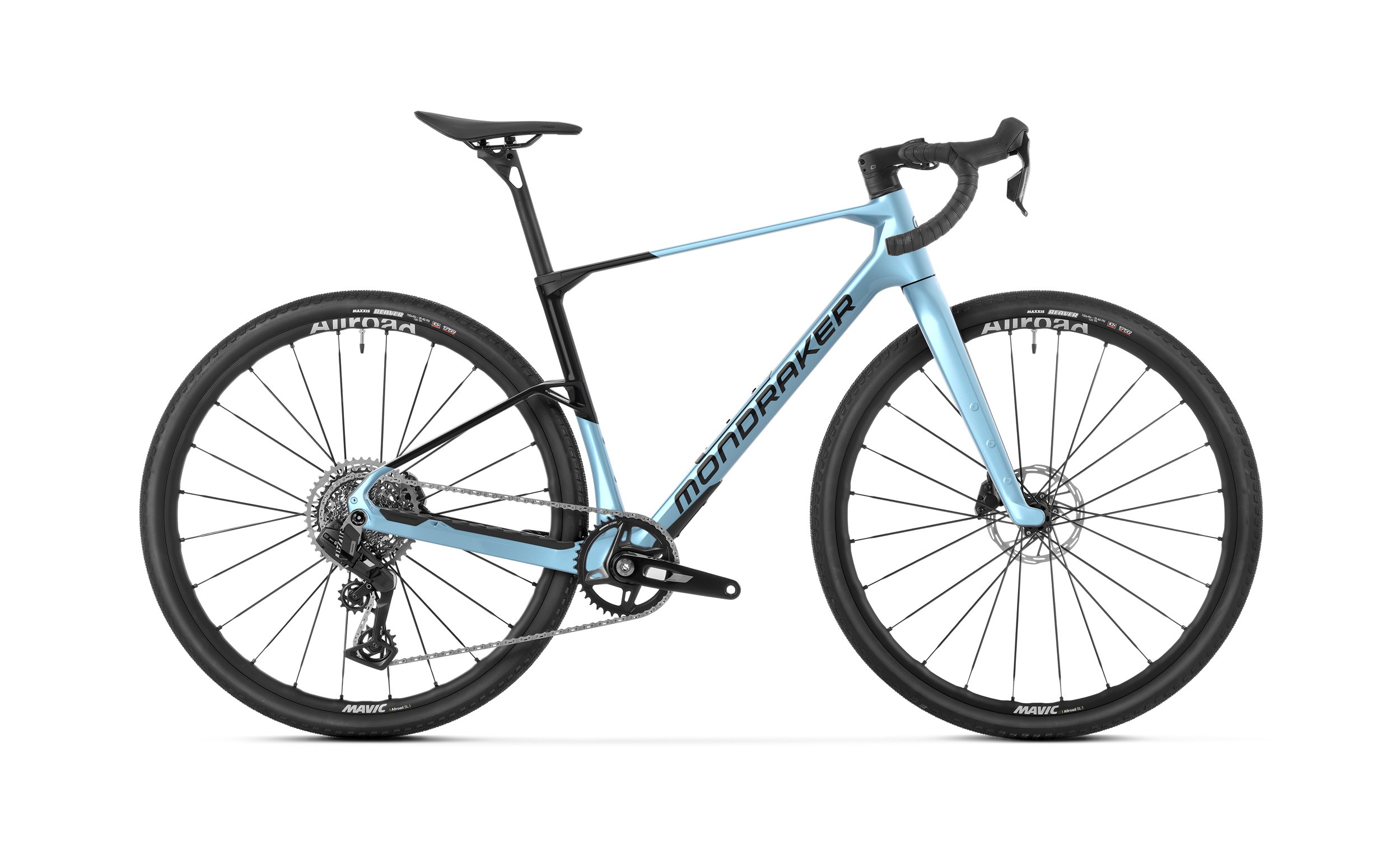

Mondraker ARID CARBON R - Aura Blue

Frame

Sizes

S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork

Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

Headset

Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.

Stem

Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

Handlebar

Onoff S9 GR CARBON 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm

Grips

Onoff HEX Bartape

Seatpost

Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm

Saddle

Fizik Vento Argo X5 140mm

Front brake

Rear brake

Sram Rival AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Brake lever

Sram Rival, tooled reach adjust, carbon brake lever

Rims

Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes

Spokes

Mavic Steel double butted flat spokes

Front hub

Mavic, 12x100mm, IS 6 bolts

Rear hub

Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub

Front tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire

Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Crankset

Sram Rival XPLR AXS, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5

Rings

Sram 40T Direct mount, alloy, narrow-wide,

Bottom bracket

Sram DUB T47 BSA, sealed bearings, 85,5mm

Chain

Sram Rival, Flattop, 13s, Powerlock

Rear derrailleur

Sram Rival XPLR AXS, 13s

Shift levers

Sram Rival AXS HRD, 13s,

Casette

Sram XG-1351, 10-46T, 13s

Weight

8,9 kg
