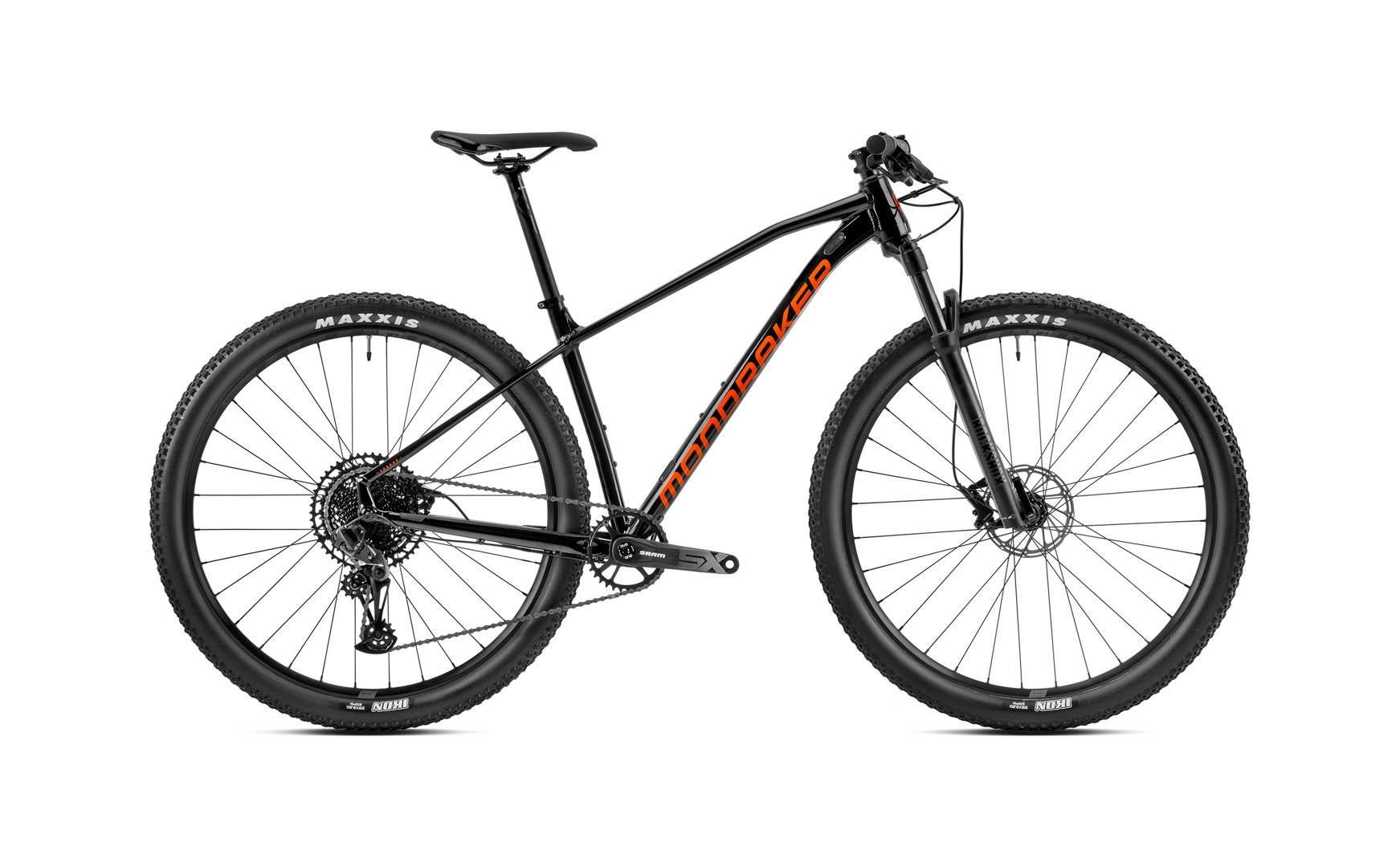

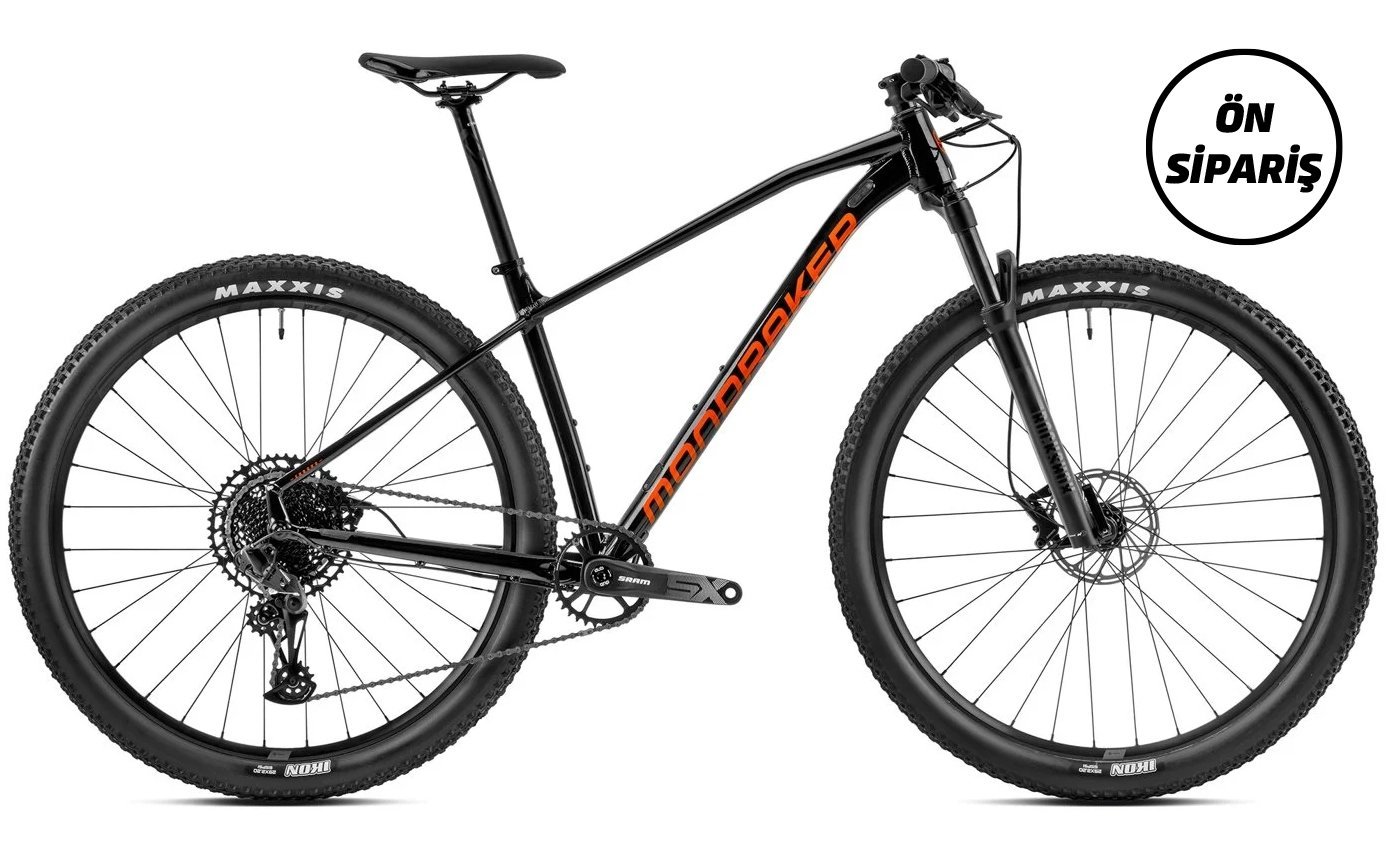

Mondraker CHRONO - Black

Frame

Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Rear shock

Shock settings

Fork

RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload

Fork remote
            RockShox PopLoc

Headset

ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm

Handlebar

ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

ONOFF Twin, 1lock-on, 135mm

Seatpost

ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Saddle

Mondraker XC Series, steel rail

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub

Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, MS freehub

Front tire

Maxxis Ikon 29x2.20, 60TPI, wire bead

Rear tire

Maxxis Ikon 29x2.20, 60TPI, wire bead

Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1210, 11-50T, 12s

Weight
