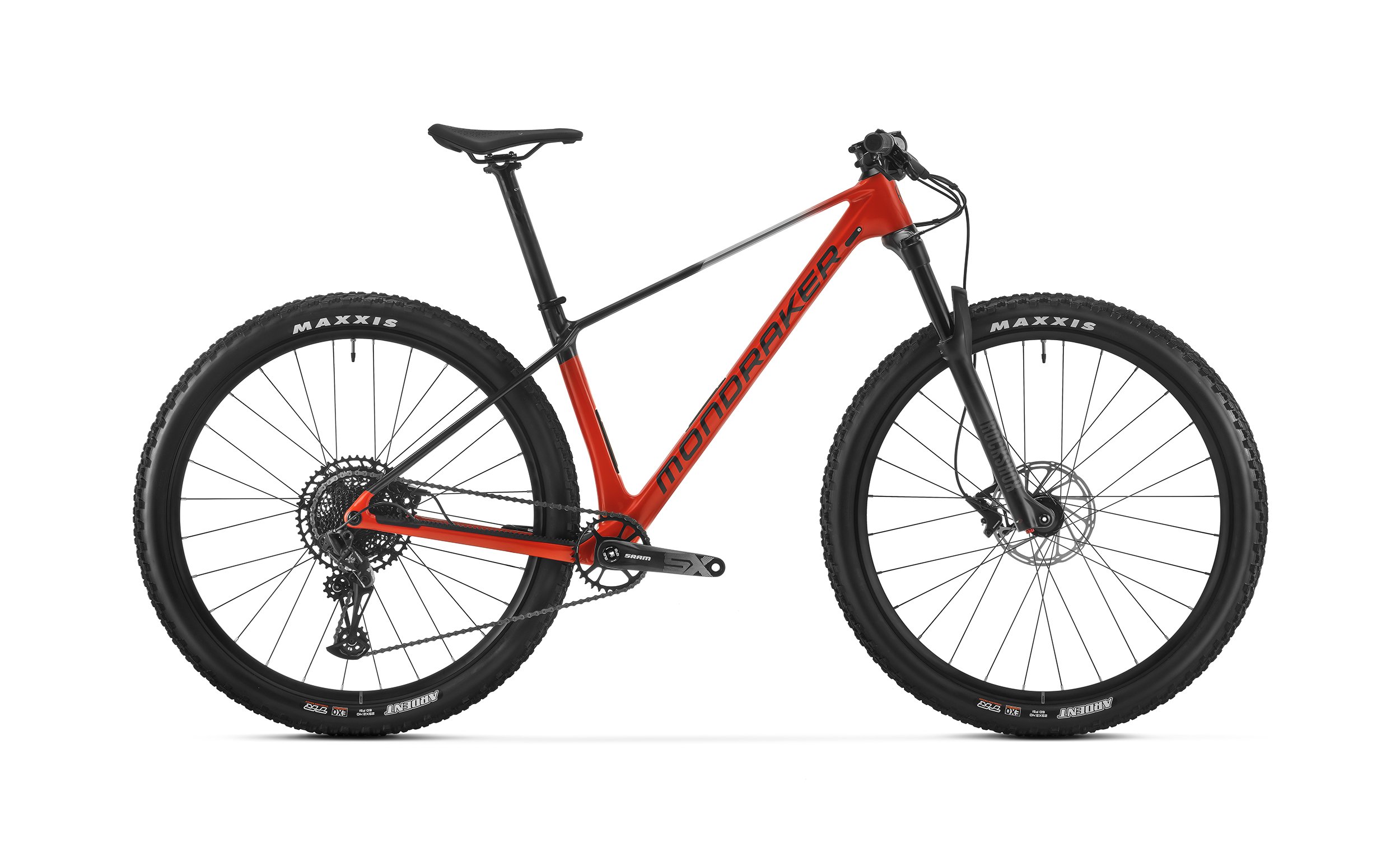

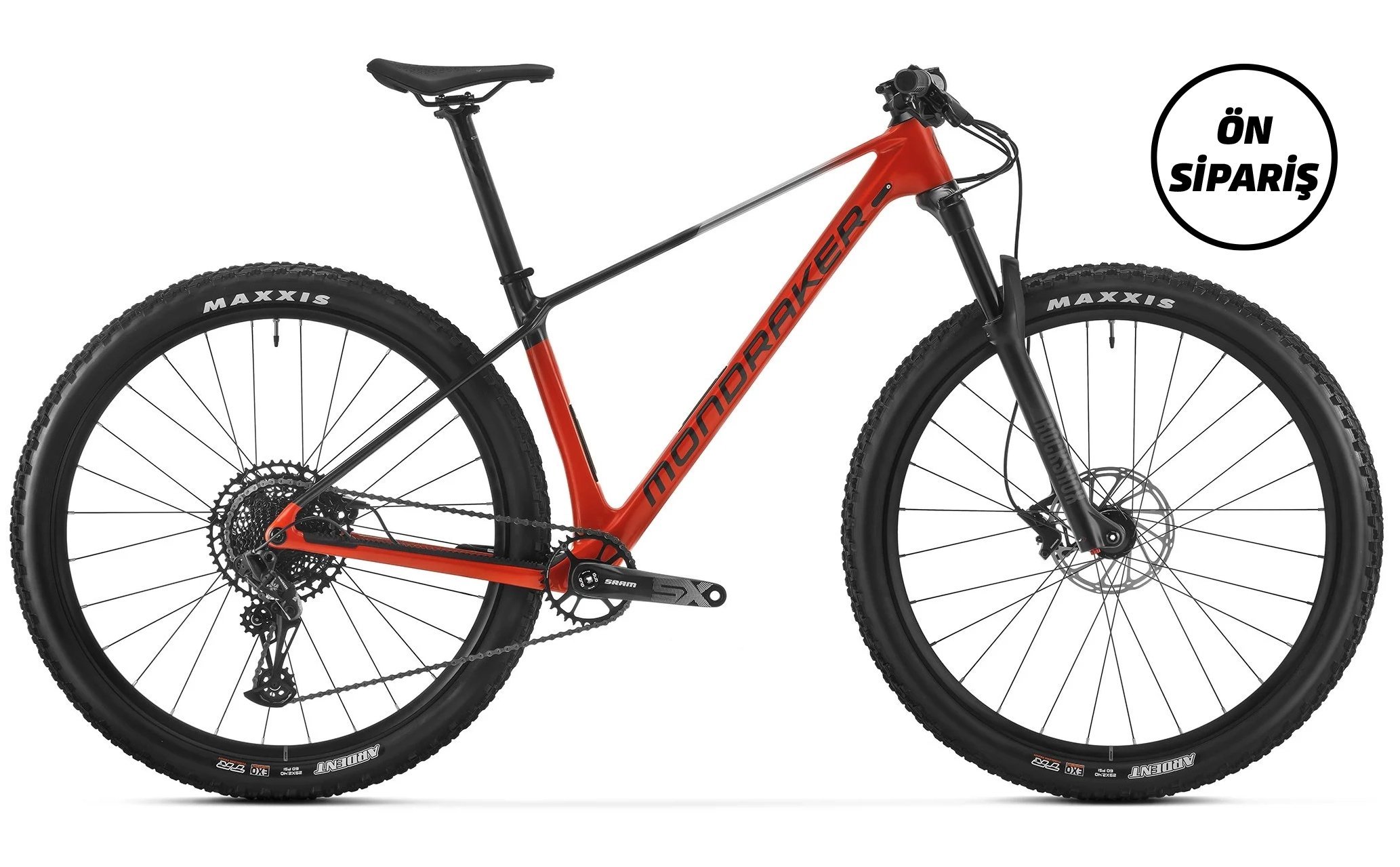

Mondraker CHRONO CARBON DC - Flame Red

Frame

Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Fork

RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload

Headset

Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 52x42x7 45°x45°, bottom 52x42x7 45°x45°.

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

Saddle

Mondraker MDK Series, SRX, steel rail

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes

Spokes

Mavic J-bend steel round spokes

Front hub

Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

 Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG
          freehub

Front tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Rear tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

12,2 kg
