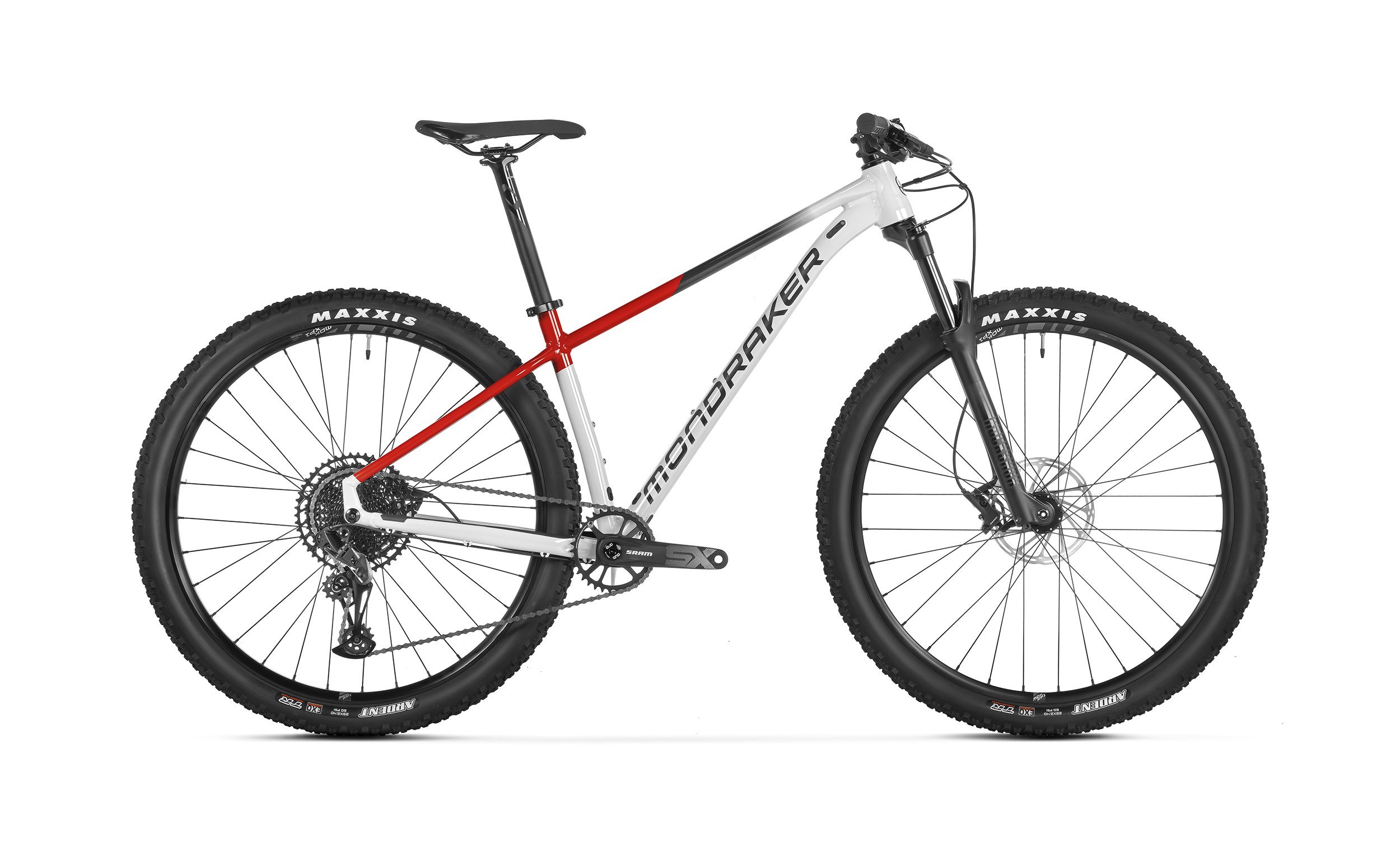

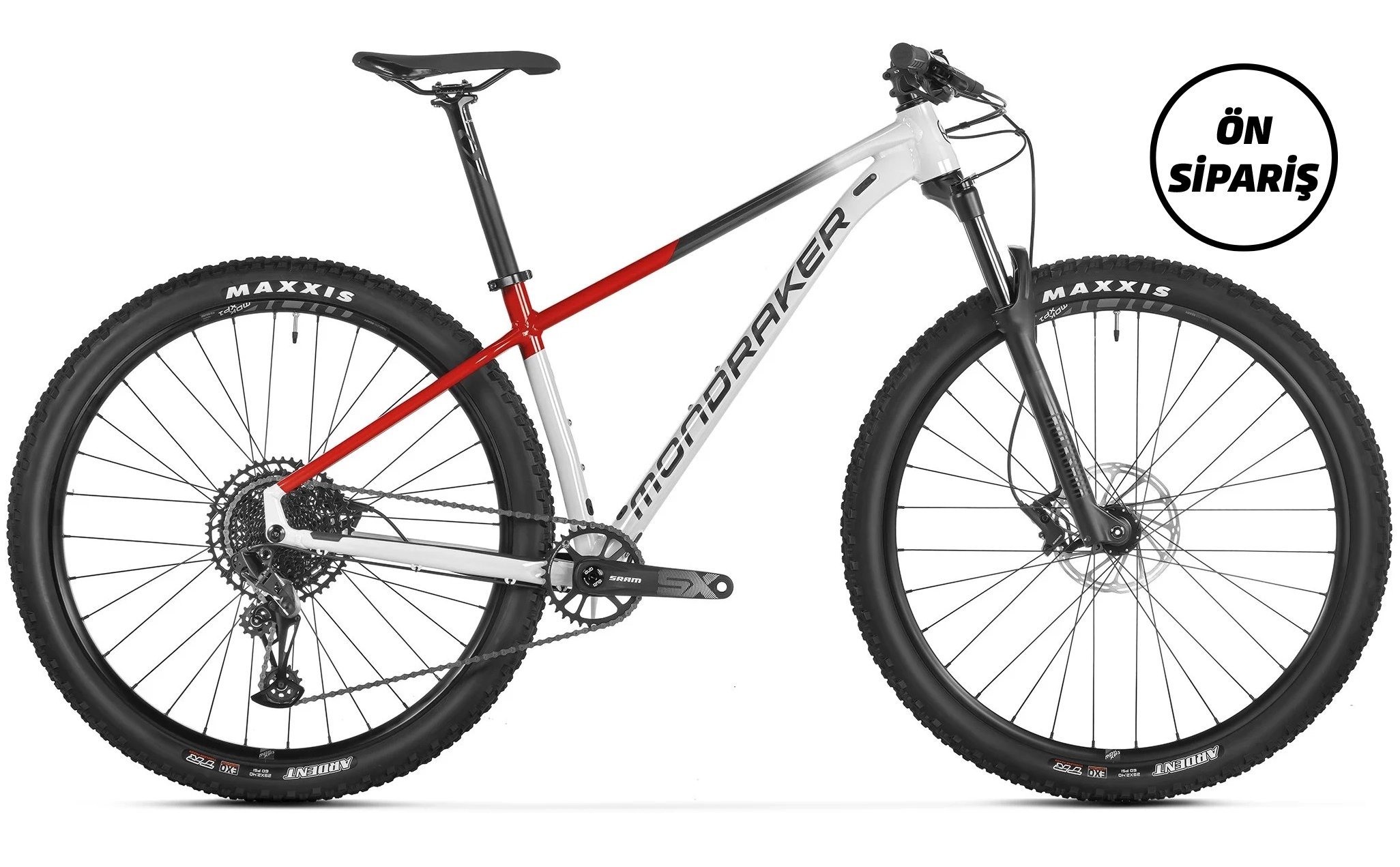

Mondraker CHRONO DC - Flame Red

Frame

Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Fork

RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 51mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31,6mm, length 400mm

Saddle

Mondraker XC Series, steel rail

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub

 Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

Front tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Rear tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Crankset

Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

 Sram PG-1210, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight
