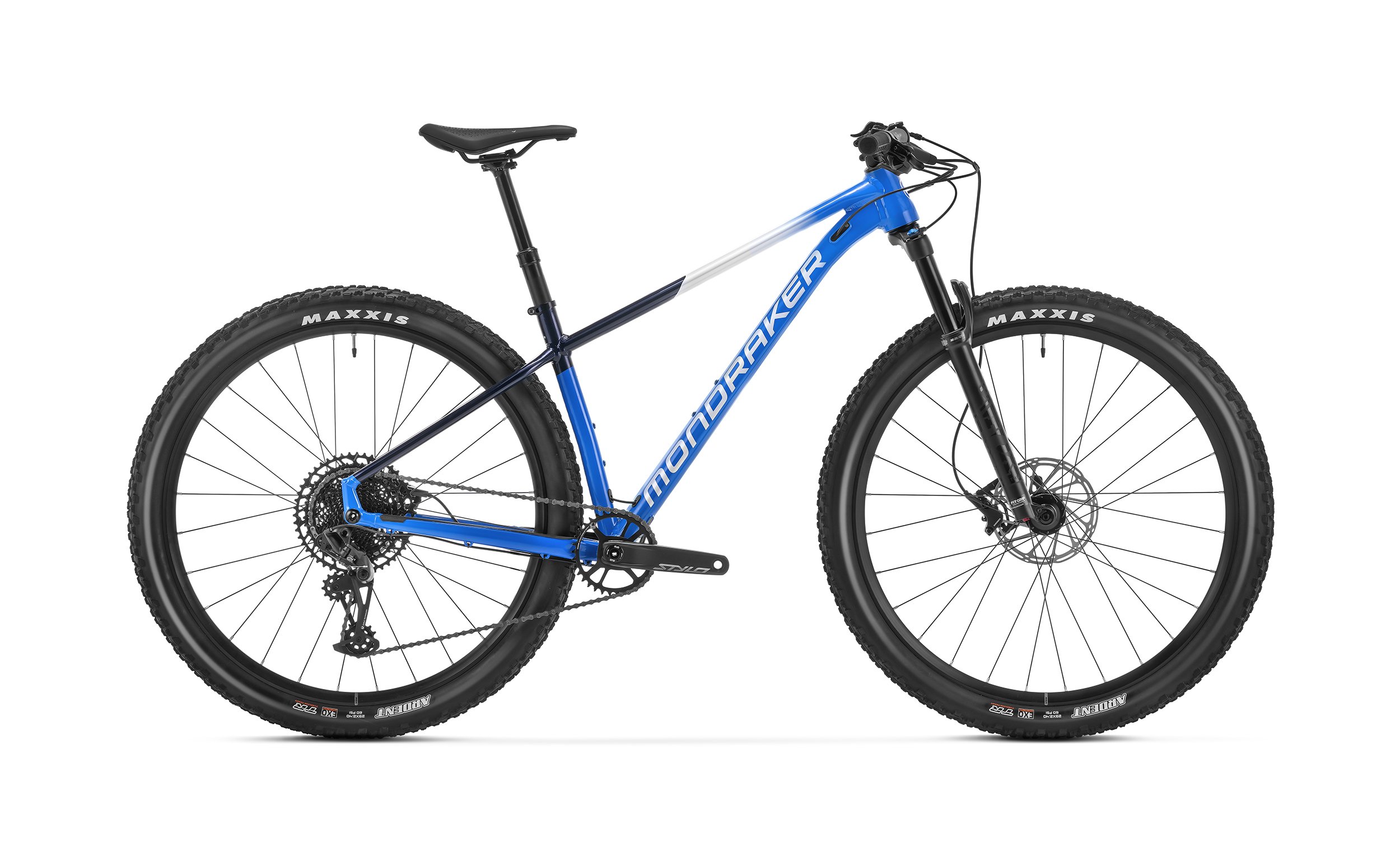

Mondraker CHRONO DC RR - Carrera Blue

Frame

Sizes

S: 395mm / M: 430mm / L: 470mm / XL: 520mm

Fork

Fox 32 29 Float GRIP Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload

Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm

Saddle

Mondraker MDK Series, SRX, steel rail

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes

Spokes

Mavic J-bend steel round spokes

Front hub

          Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

  Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

Front tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Rear tire

Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead

Crankset

Sram Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52

Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

 Sram PG-1210, 11-50T, 12s

Derailleur hanger

Mondraker M068

Weight
