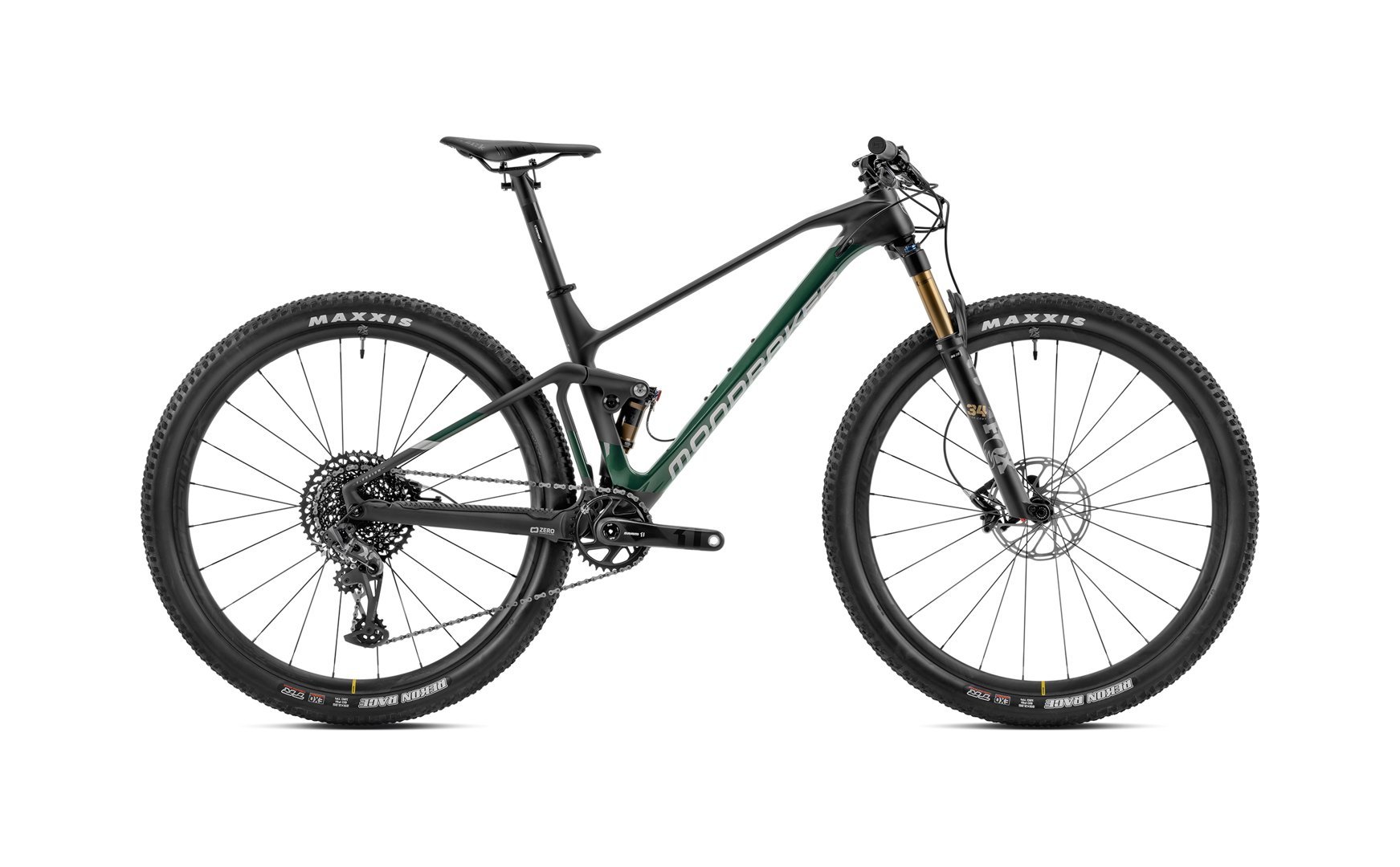

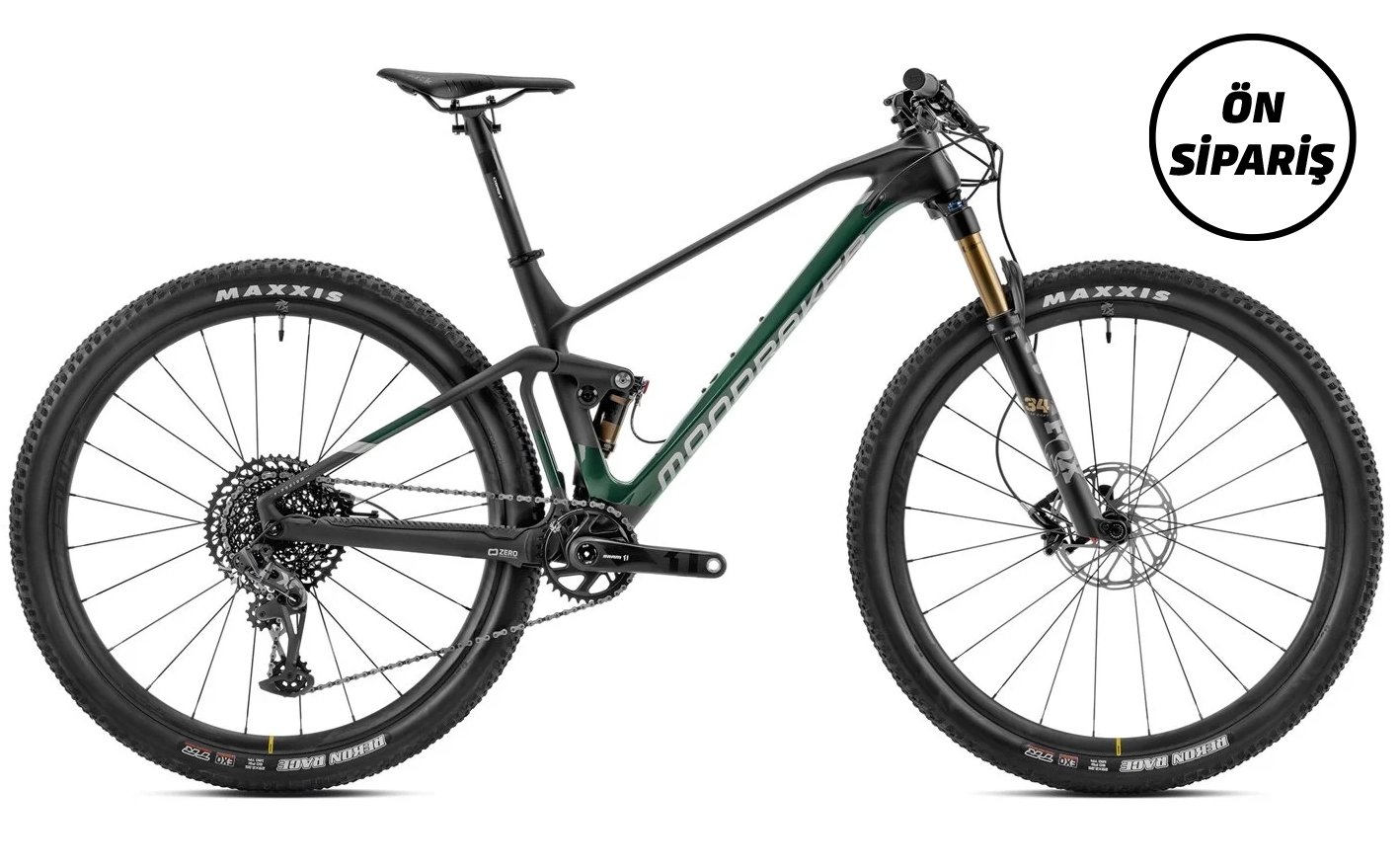

Mondraker F-PODIUM CARBON R - Green Silver

Frame

Sizes

S: 390mm/M: 420mm/L: 470mm/XL: 510mm

Rear shock

Fox Float DPS SV EVOL Factory Kashima, 185x47.5mm. Adjustments: 2-position compression adjustment (open/locked), low-speed rebound, pneumatic preload. Trunnion top mount, bottom rings 22.2 x 10mm
Damper Tuning: Firm Compression, Light Rebound, 0.2 Air Volume Spacer

Shock settings

Fork

Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 110mm, tapered steerer, Boost 15x110mm axle, 44mm offset. Adjustments: 2-position Push handlebar lockout, low-speed compression micro-adjustment, rebound, air preload

Fork remote
            Fox double pull

Headset

Acros AZX-239 R1 Block Lock, ZS44/28.6 upper, ZS56/40 lower

Stem

MDK, 6061 T6 aluminum, 31.8mm bore, rise: +/-5º, length: sizes S / M: 50mm, sizes L: 60mm, sizes XL: 70mm

Handlebar

ONOFF Helium carbon 0.2, curve: 4.8 mm, width: 760 mm, bend 9°, rise 0°, bore 31.8 mm

Grips

ONOFF Desert, Single Lock, 135mm

Seatpost

ONOFF Helium Carbon 0-R, diameter 31.6 mm, length 400 mm

Saddle

Fizik Antares R7

Front brake

Rear brake

Sram Level TL, 2-piece caliper, Centerline 160mm IS 6-bolt one-piece rotor, organic steel pads

Brake lever

Sram Level TL, Direct Link Lever, Tool Reach Adjust, Lever Pivot Bushings

Rims

Mavic Crossmax Carbon XL R 29, 30mm inner width, hookless, Tubeless Ready, 24 spokes.

Spokes

Mavic straight pull double butted, non-contact lacing

Front hub

Mavic , Boost 15 x 110 mm, IS 6 bolts

Rear hub

Mavic , Boost 12 x 148 mm, ID360 ratchet system, IS 6 bolts, XD freewheel

Front tire

Maxxis Rekon Race 29x2.35, EXO Protection, Tubeless Ready, 120 TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.35, EXO Protection, Tubeless Ready, 120 TPI, folding bead

Crankset

Sram X1 Carbon Eagle, Boost, DUB axle, Direct Mount chainring, size S: 170mm, size M/L/XL: 175mm

Rings

34T, CNC machined aluminum, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX Eagle, 12 speed, Powerlock

Rear derrailleur

Sram X01 Eagle, Roller Bearing Clutch type 3, cage lock technology, 1x12 speed, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1

Casette

Sram XG-1275, 10-50T, 12 speed

Weight
