Derailleur hanger
Sram UDH
Mondraker F-PODIUM R - Flame Red
Stok Kodu : 010.24076
0,00 TL

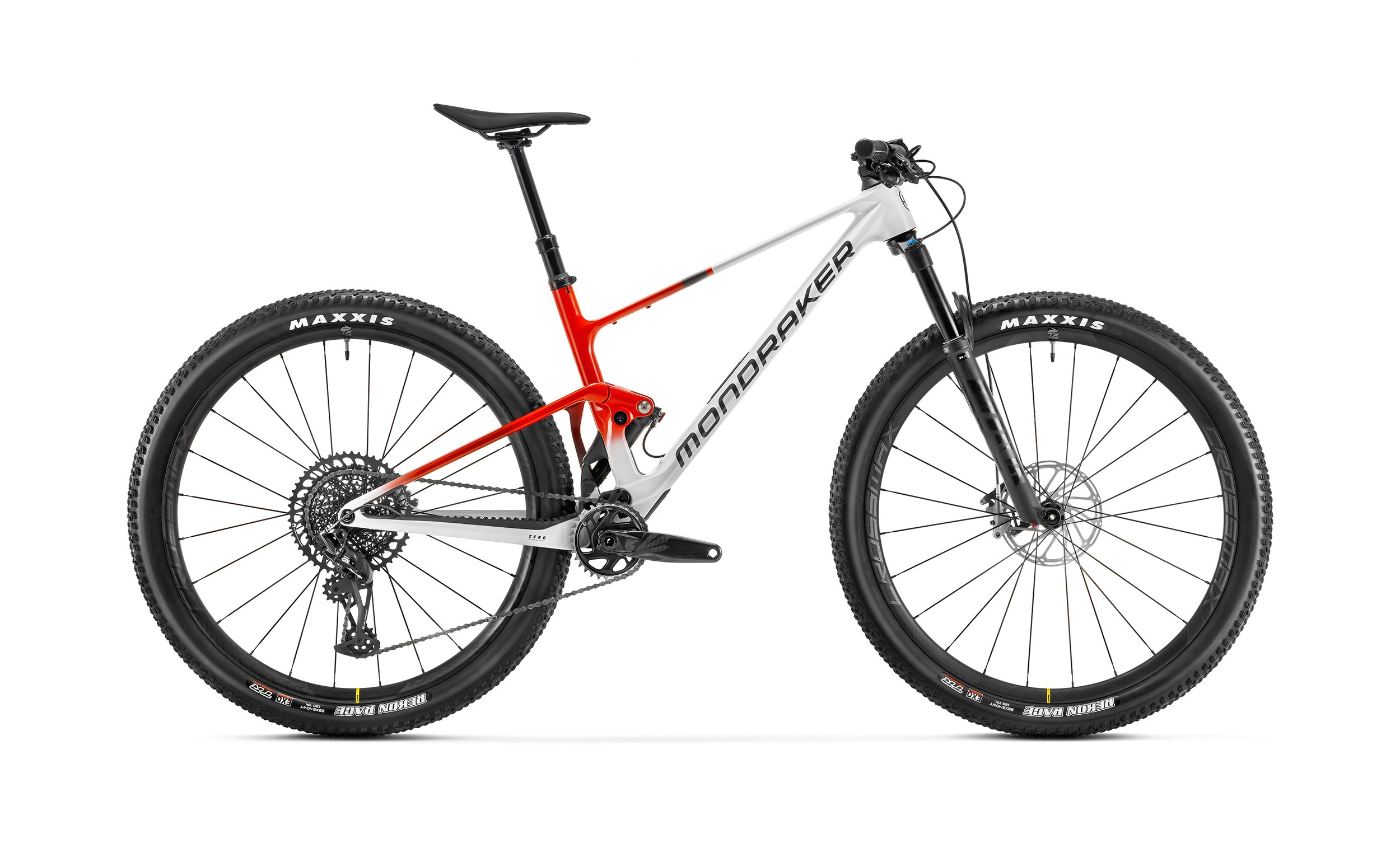

Mondraker F-PODIUM R - Flame Red
Frame
Fork remote
Fox 3 position dual pull push to lock
Front hub
Rear tire
Crankset
Rings
Bottom bracket
Chain
Rear derrailleur
Shift levers
Casette
Weight
FrameF-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Sizes
S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Rear shock
Fox Float SL Performance SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Medium compression, medium rebound, air volume spacer 0.4
Fork
Fox 34 Step Cast Float Grip EVOL Performance, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, rebound, air preload
Fork remoteFox 3 position dual pull push to lock
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
Fizik Vento Argo X5
Front brake
Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level Bronze, tools-free reach adjust, lever pivot bushings
Rims
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes
Mavic 24 straight-pull double butted spokes
Front hub Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Rear tireMaxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
CranksetSram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings34T, CNC-machined alloy, X-SYNC 2
Bottom bracketSram DUB BSA, sealed bearings, 73mm
ChainSram SX Eagle, 12s, Powerlock
Rear derrailleurSram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift leversSram GX Eagle, 12s
CasetteSram XG-1275, 10-52T, 12s
Weight11,9 kg
