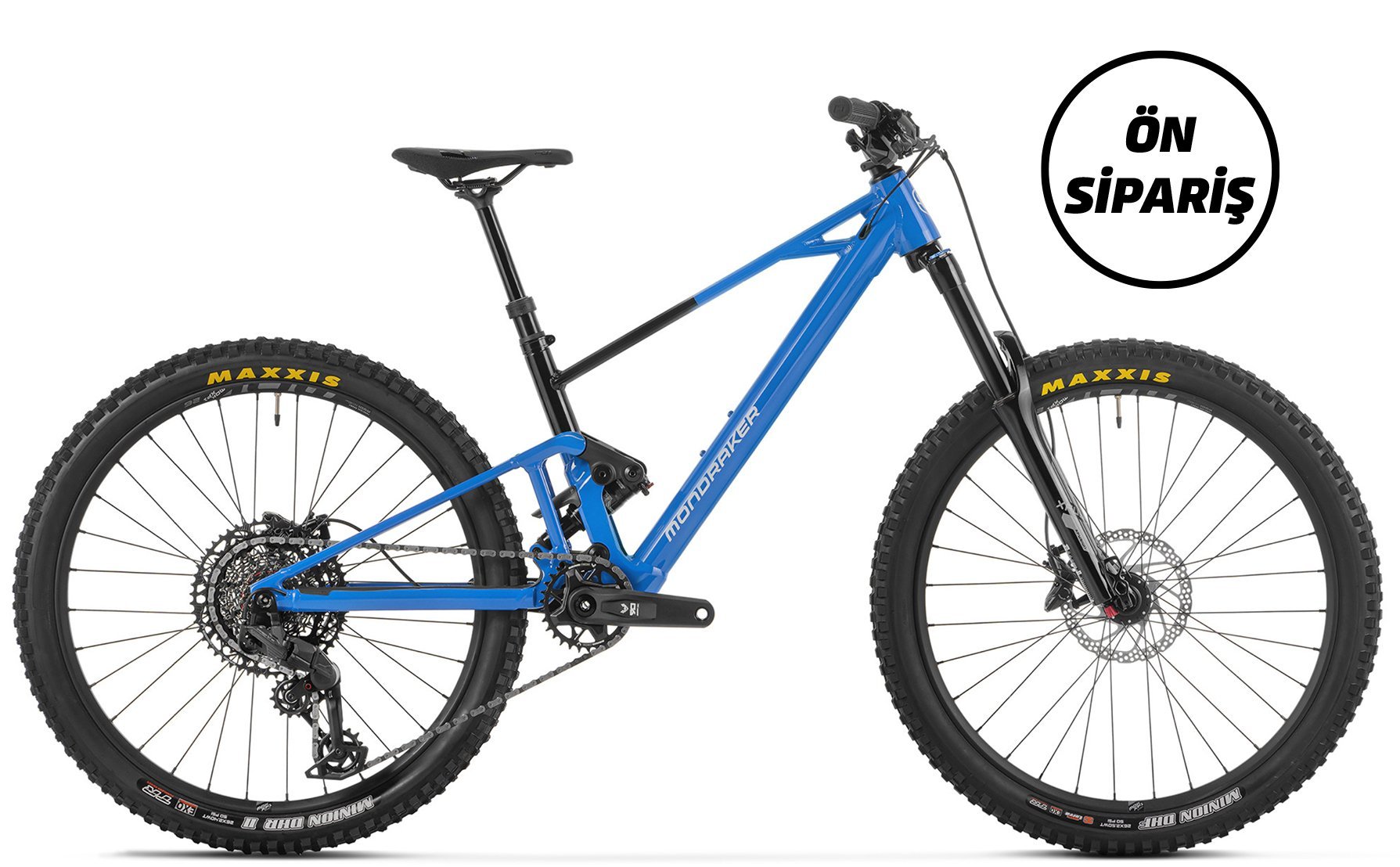

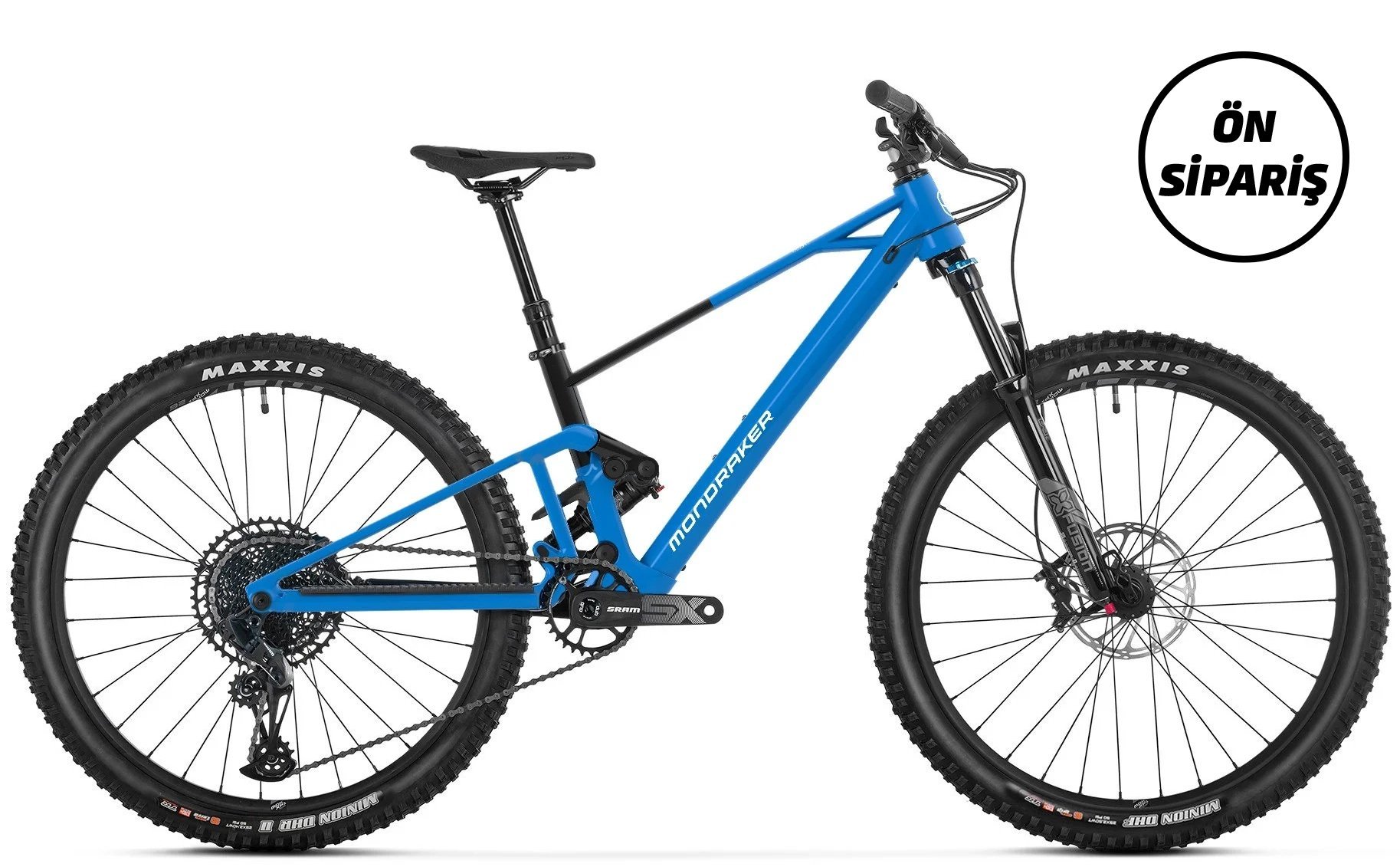

Mondraker F-TRICK 26 - Carrera Blue

Frame

Sizes

One size: 350mm

Rear shock

X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings

Shock settings

A-Tune light compression

Fork

X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Fork remote


Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm

Saddle

SDG Fly JR

Front brake

Rear brake

Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads

Brake lever

Shimano MT501, servo wave, alloy lever

Rims

MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub

DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub

Front tire

Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead

Crankset

Sram 90 T-Type, DUB axle, Direct mount chain ring, 155mm

Rings

30T, Alloy, T-type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram 70 T-Type, 12s Flattop, PowerLock

Rear derrailleur

Sram 70 Eagle, T-Type, 12s

Shift levers

Sram Trigger 70, 12s, T-Type Actuation

Casette

Sram XS-1270, 10-52T, 12s

Weight
