Weight
14,8 kg

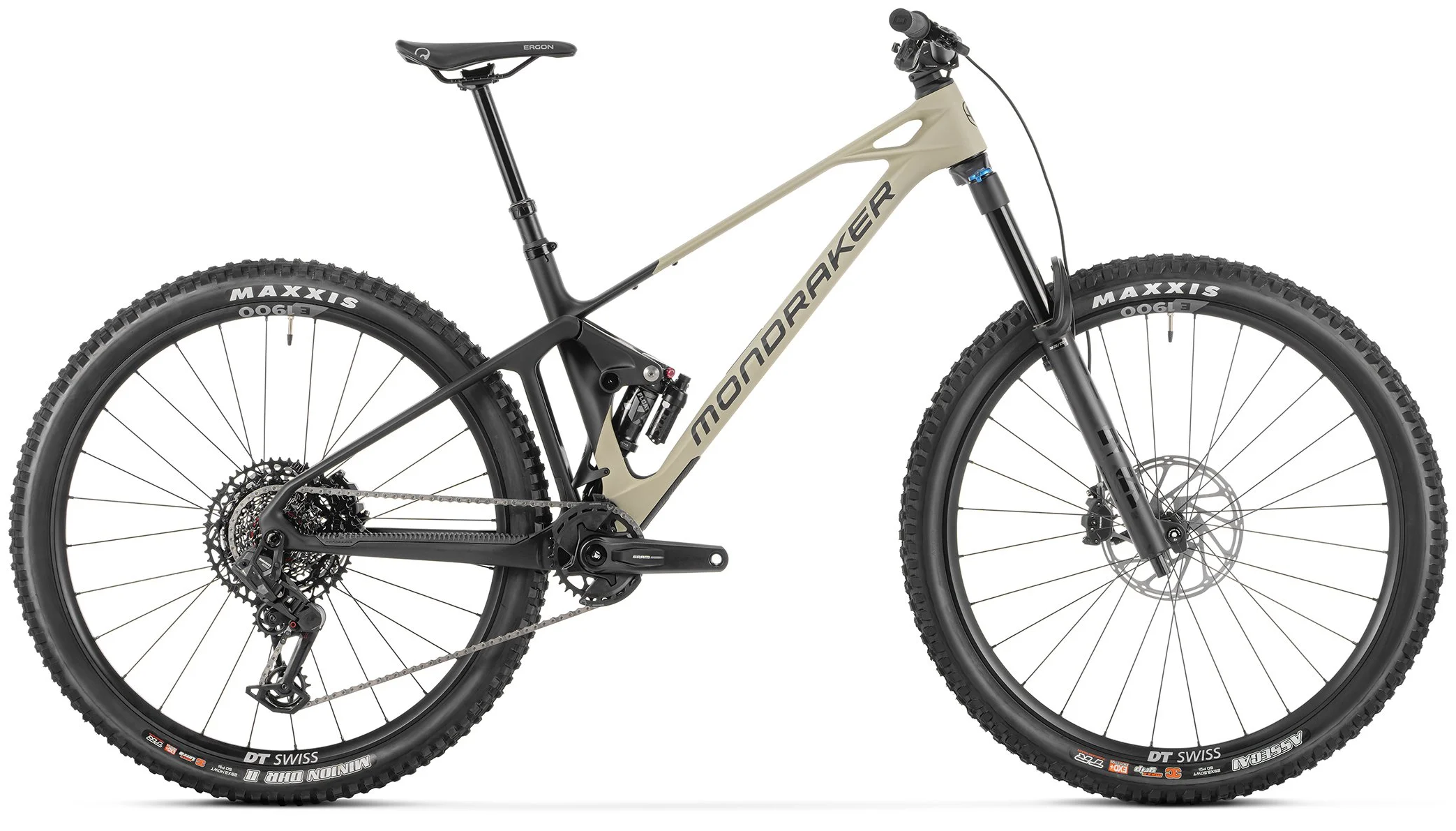

Mondraker FOXY CARBON R - Desert Grey
Frame
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Front hub
Rear tire
Crankset
Rings
Bottom bracket
Chain
Rear derrailleur
Shift levers
Casette
Frame
Sizes
S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon Enduro SPS20
Front brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
Spokes
DT Champion, straightpull
Front hubDT 370, Boost 15x110mm, IS 6 bolts
Rear hub
DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tireMaxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
CranksetSram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, CL 55
Rings32T, CNC-machined alloy, T-Type
Bottom bracketSram DUB BSA, sealed bearings, 73mm, wide
ChainSram GX Eagle T-Type, 12s, Powerlock
Rear derrailleurSram S1000 Eagle AXS T-Type, 12s
Shift leversSram Eagle AXS Pod, 12s
CasetteSram XS-1270, 10-52T, T-Type 12s
