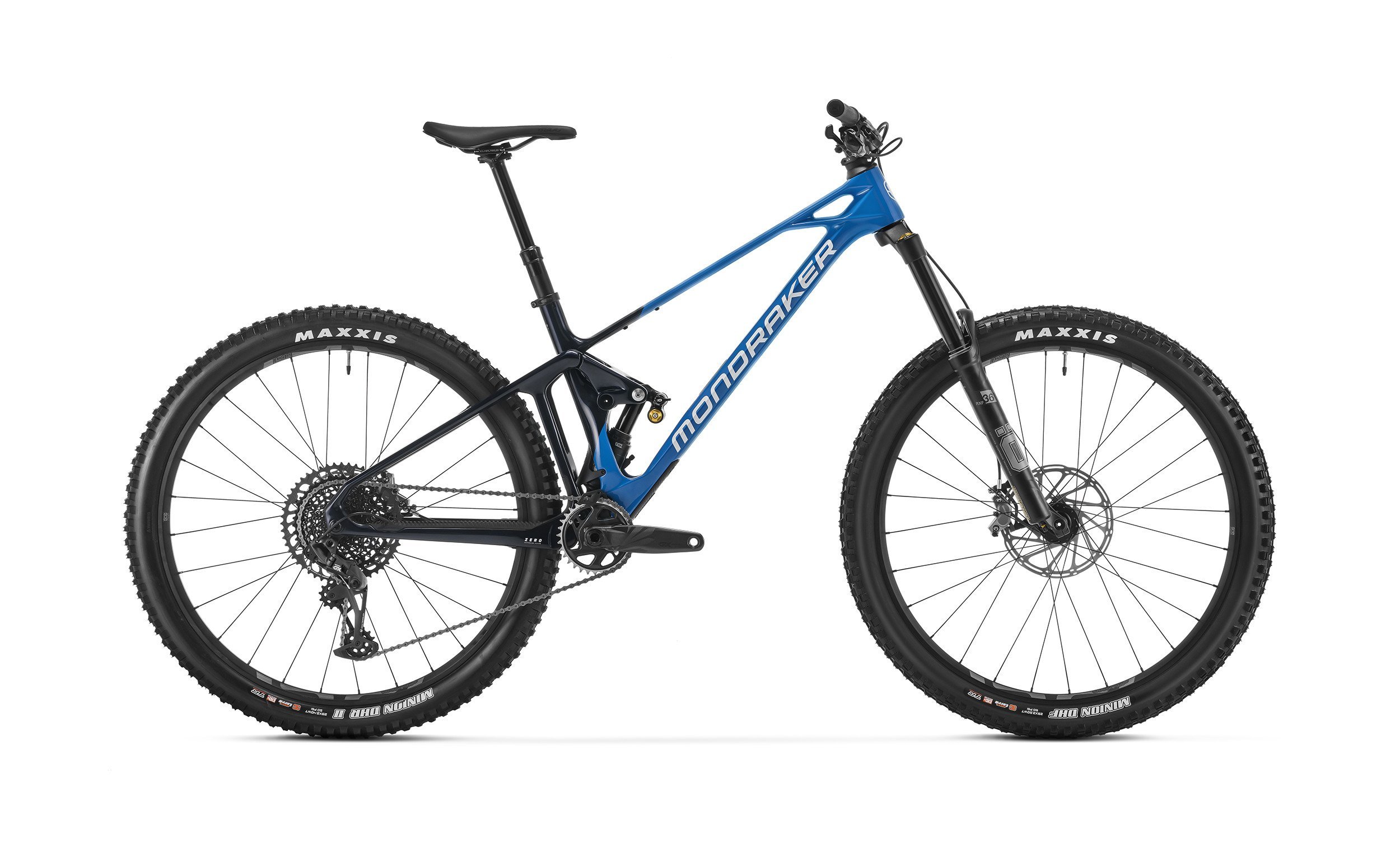

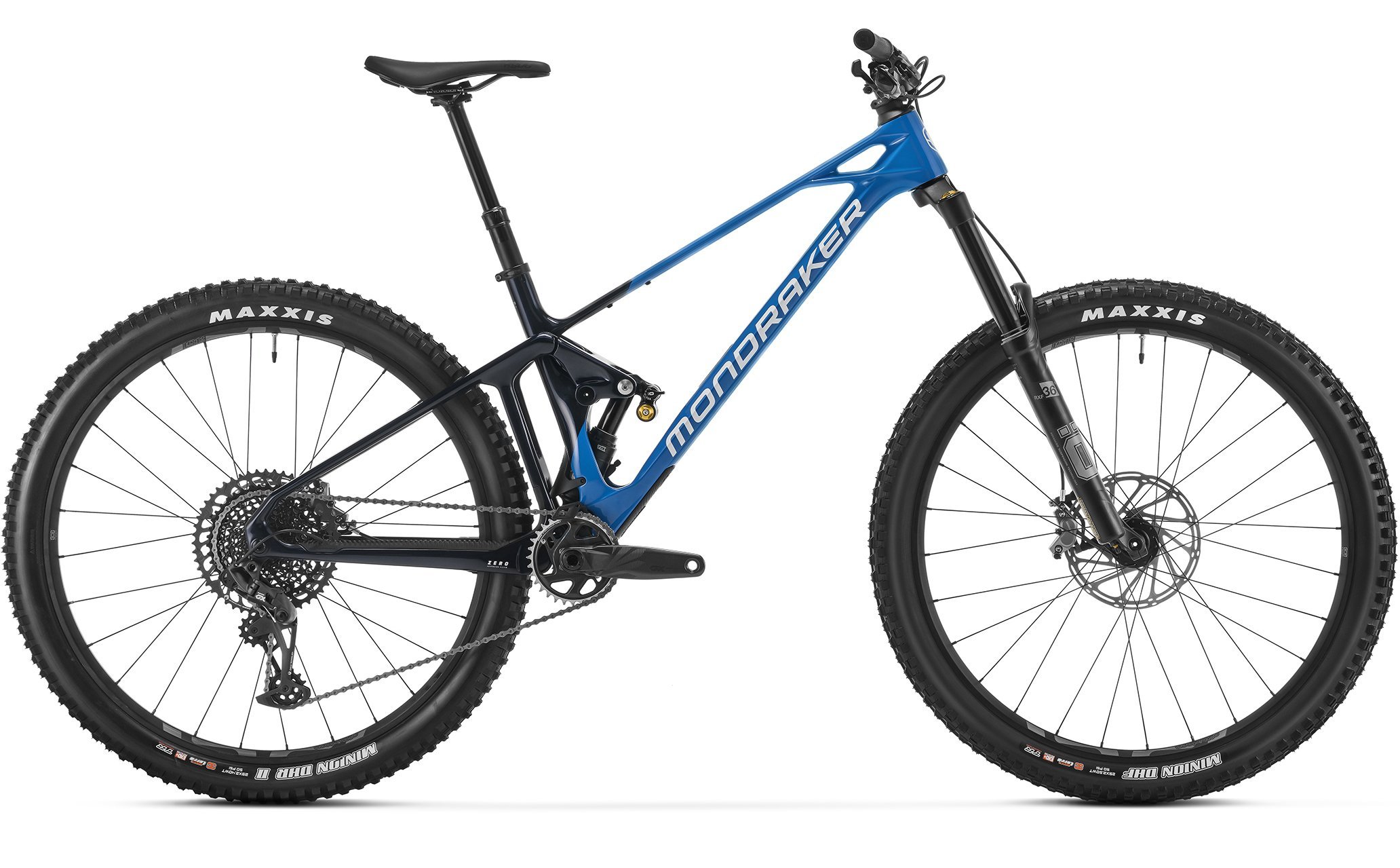

Mondraker FOXY Carbon RR - Carrera Blue

Mondraker FOXY Carbon RR - Carrera Blue

Frame

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock

Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

Fork

Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Rear brake

Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Rims

e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub


Front tire

Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Crankset

Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-52T, 12s

Derailleur hanger

Sram UDH

Weight

14,6 kg
