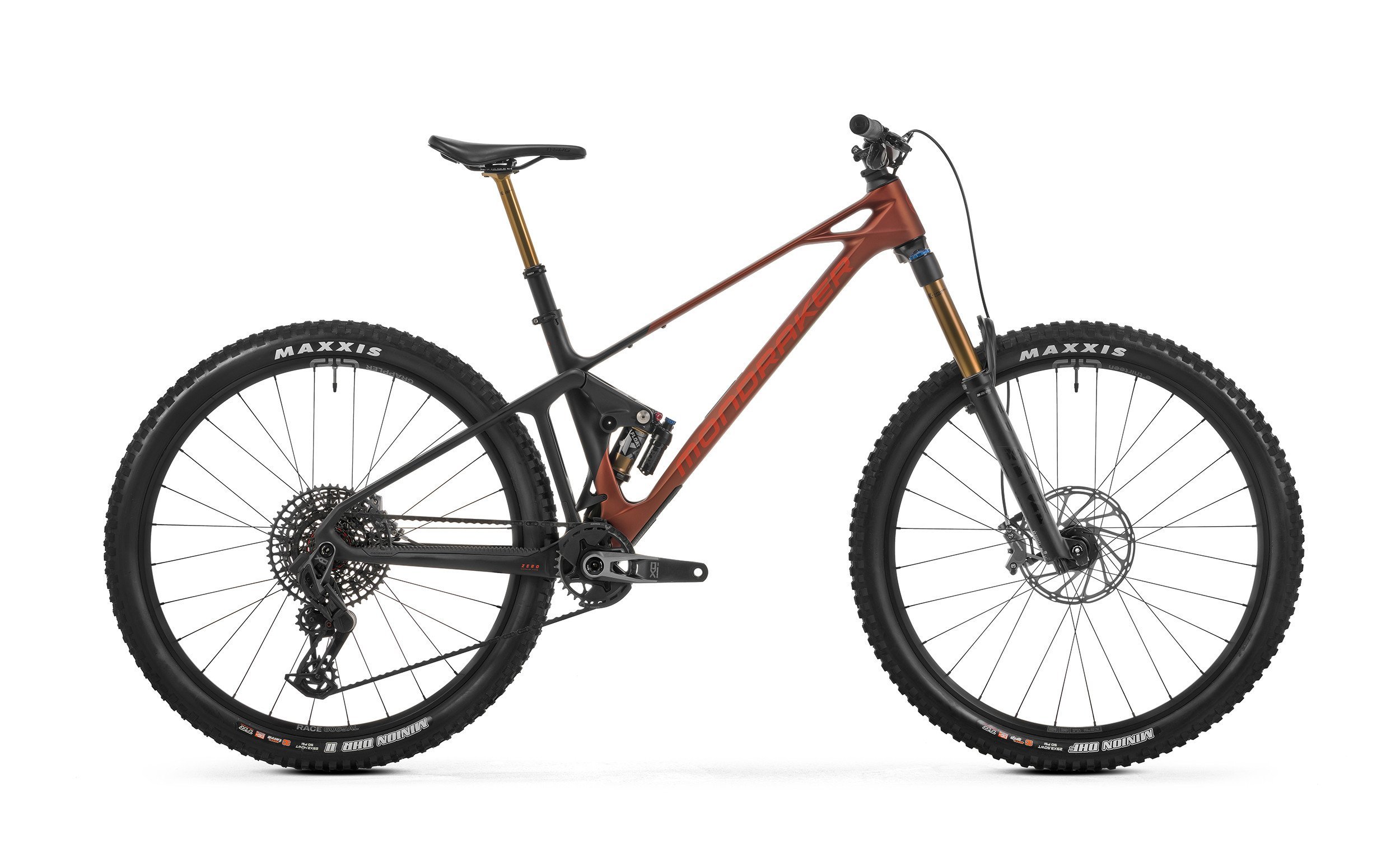

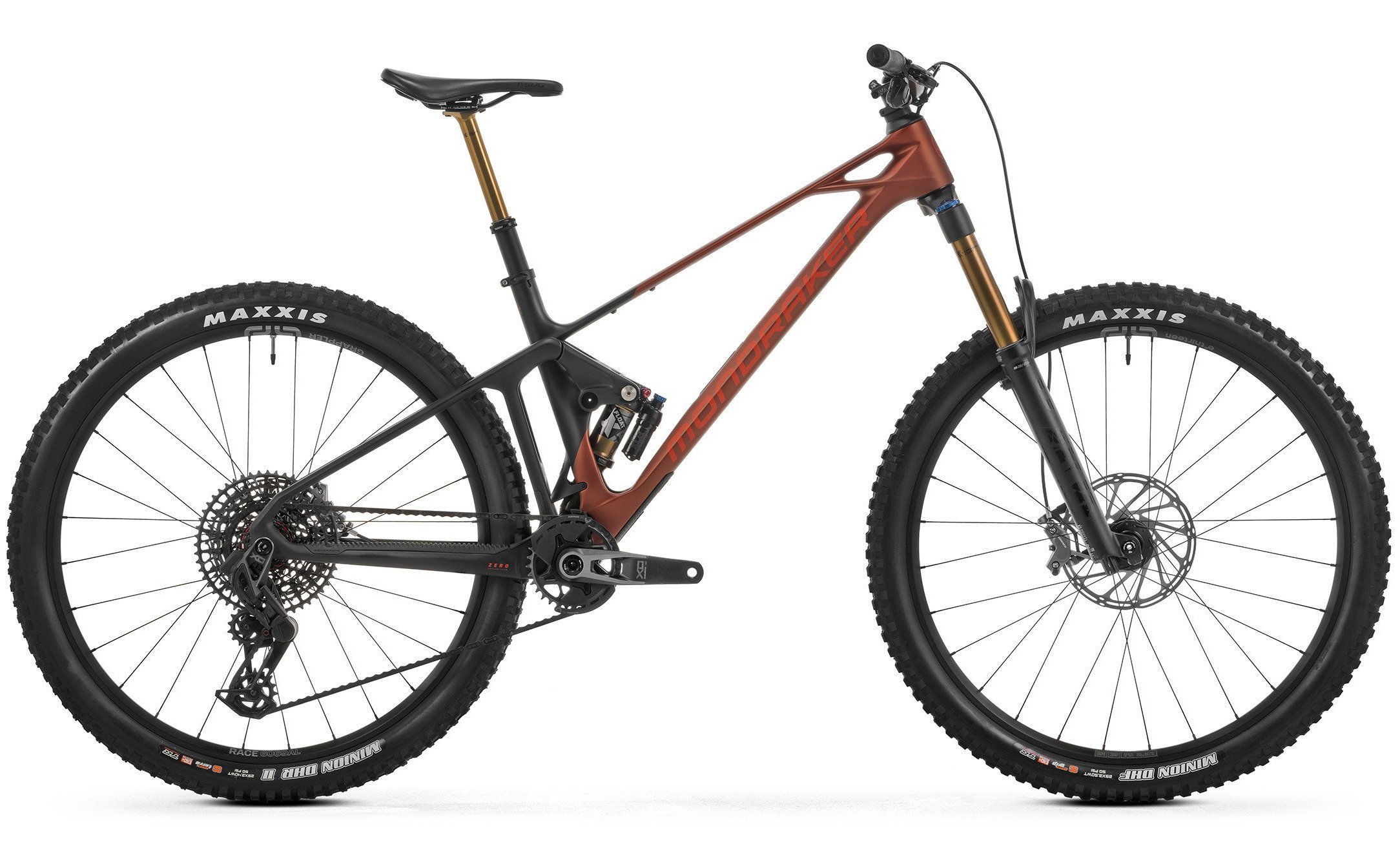

Mondraker FOXY Carbon RR - Earth Red
Sizes
S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock
Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
Light compression, light rebound, air volume spacer 0.6
Fork
Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake
Rear brake
Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
32T, CNC-machined alloy, T-Type
Sram DUB BSA, sealed bearings, 73mm, wide
Sram X0 Eagle T-Type, 12s, Powerlock
Sram X0 Eagle AXS T-Type,12s
Sram Eagle AXS Pod, 12s
Sram XS-1295, 10-52T, T-Type 12s
14,4 kg
