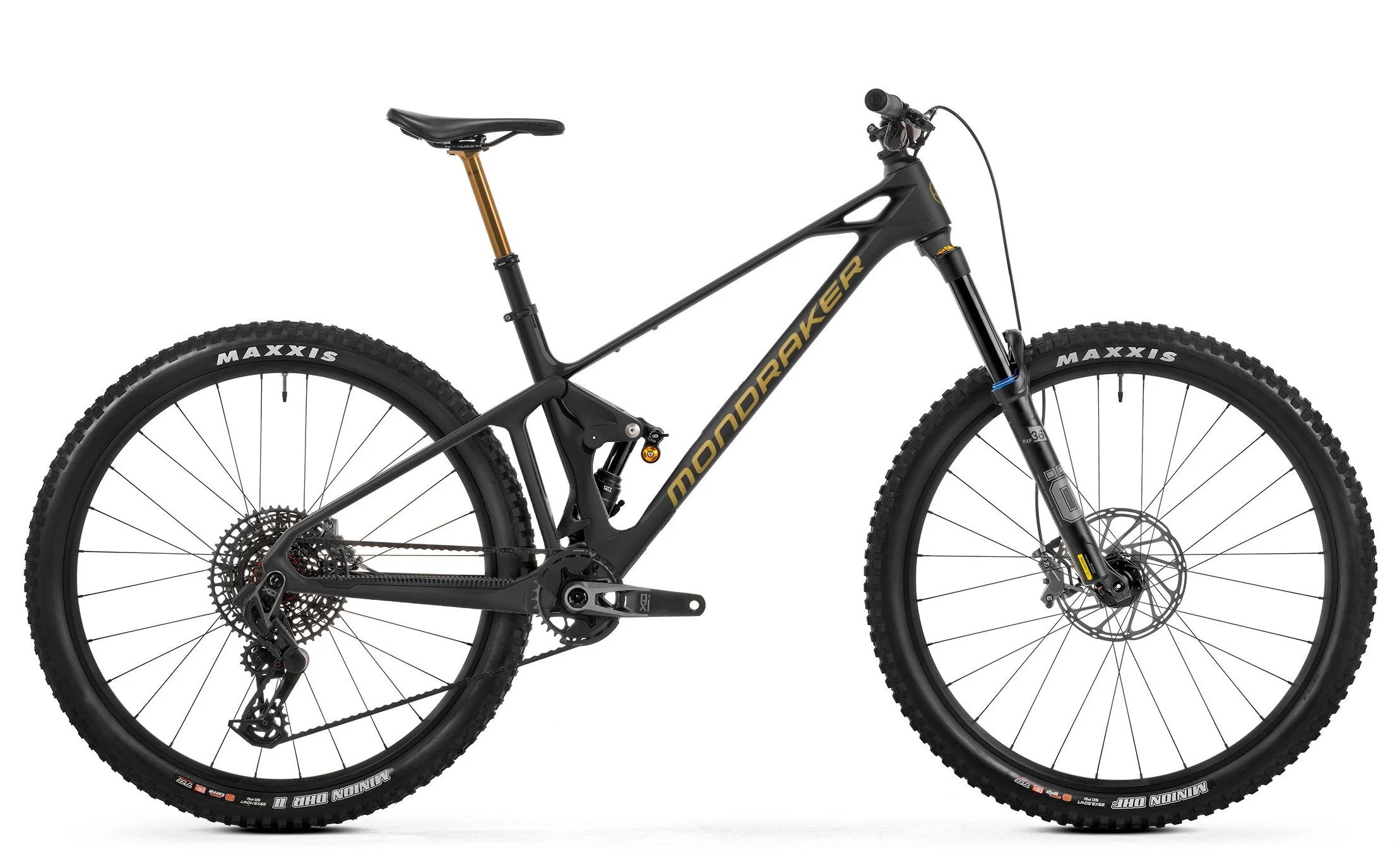

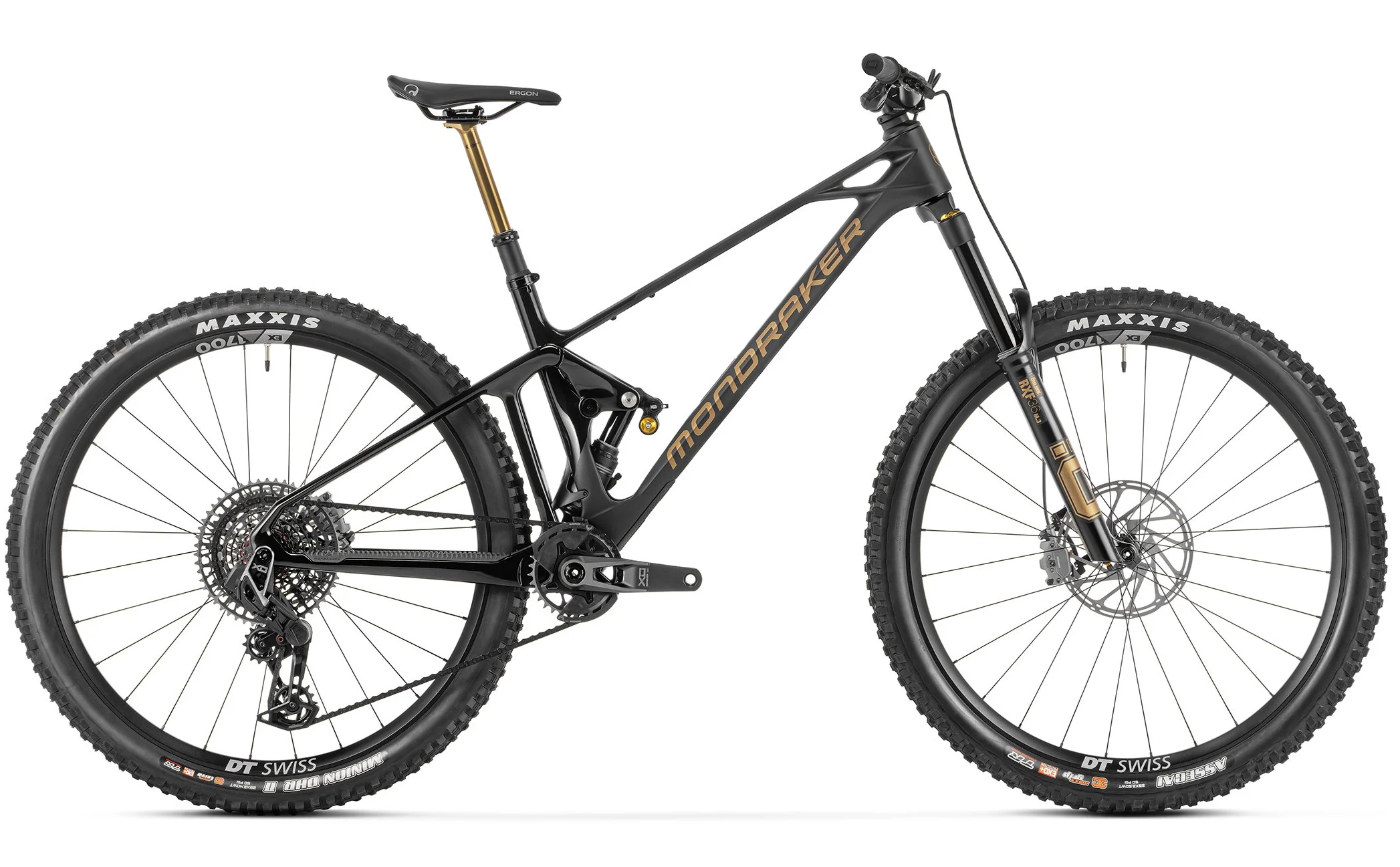

Mondraker FOXY CARBON RR - Superblack

Frame

Sizes

S: 375mm / M: 415mm / L: 445mm / XL: 500mm

Rear shock

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

C10 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

Fork

Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem

Onoff S9 30mm 0°, Full CNC, 31.8mm barbore

Handlebar

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm

Saddle

Ergon Enduro SPS20

Front brake

Rear brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims

DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes

Spokes

DT Competition, straightpull

Front hub

DT 350, Boost 15x110mm, IS 6 bolts

Rear hub

DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead

Rear tire

Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead

Crankset

Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, CL 55

Rings

32T, CNC-machined alloy, T-Type

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, wide

Chain

Sram X0 Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram X0 Eagle AXS T-Type,12s

Shift levers

Sram Eagle AXS Pod, 12s

Casette

Sram XS-1295, 10-52T, T-Type 12s

Weight
14,3 kg
