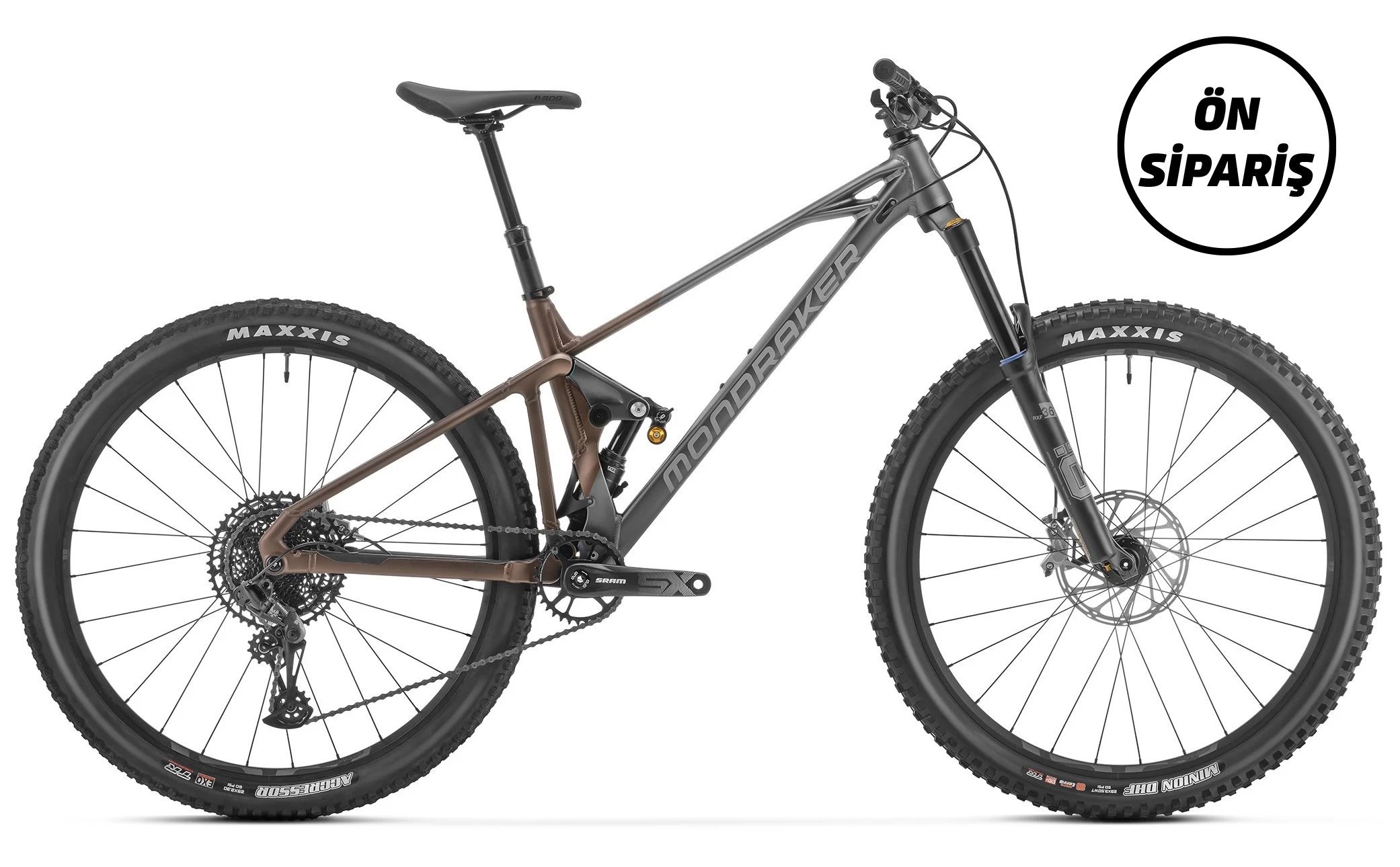

Mondraker FOXY R - Bronze
Stok Kodu : 010.24124
243.000,00 TL
270.000,00 TL
%10
* 23.091,08 TL den başlayan taksitlerle!
Mondraker FOXY R - Bronze
“Ön Sipariş” kategorisinden sipariş verilen bisikletlerin teslim süresi 4-6 hafta arasıdır.
Detaylı bilgi ve merak ettikleriniz için arayabilir, mesaj atabilir ya da mağazamızı ziyaret edebilirsiniz.
-İletişim: 0543 377 74 87
-Konum: Mithatpaşa Mh Abdulhamit Han Cad No:133A Kemerburgaz/Eyüpsultan/İstanbul
“Ön Sipariş” kategorisinden sipariş verilen bisikletlerin teslim süresi 4-6 hafta arasıdır.
Detaylı bilgi ve merak ettikleriniz için arayabilir, mesaj atabilir ya da mağazamızı ziyaret edebilirsiniz.
-İletişim: 0543 377 74 87
-Konum: Mithatpaşa Mh Abdulhamit Han Cad No:133A Kemerburgaz/Eyüpsultan/İstanbul
FrameFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings
C20 compression, R35 rebound
Fork
Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake
Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hube*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tireMaxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
CranksetSram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings32T, CNC-machined alloy, X-SYNC 2
Bottom bracketSram DUB BSA, sealed bearings, 73mm
ChainSram SX Eagle, 12s, Powerlock
Rear derrailleurSram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift leversSram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette
Sram PG-1230, 11-50T, 12s
Weight 16,2 kg
