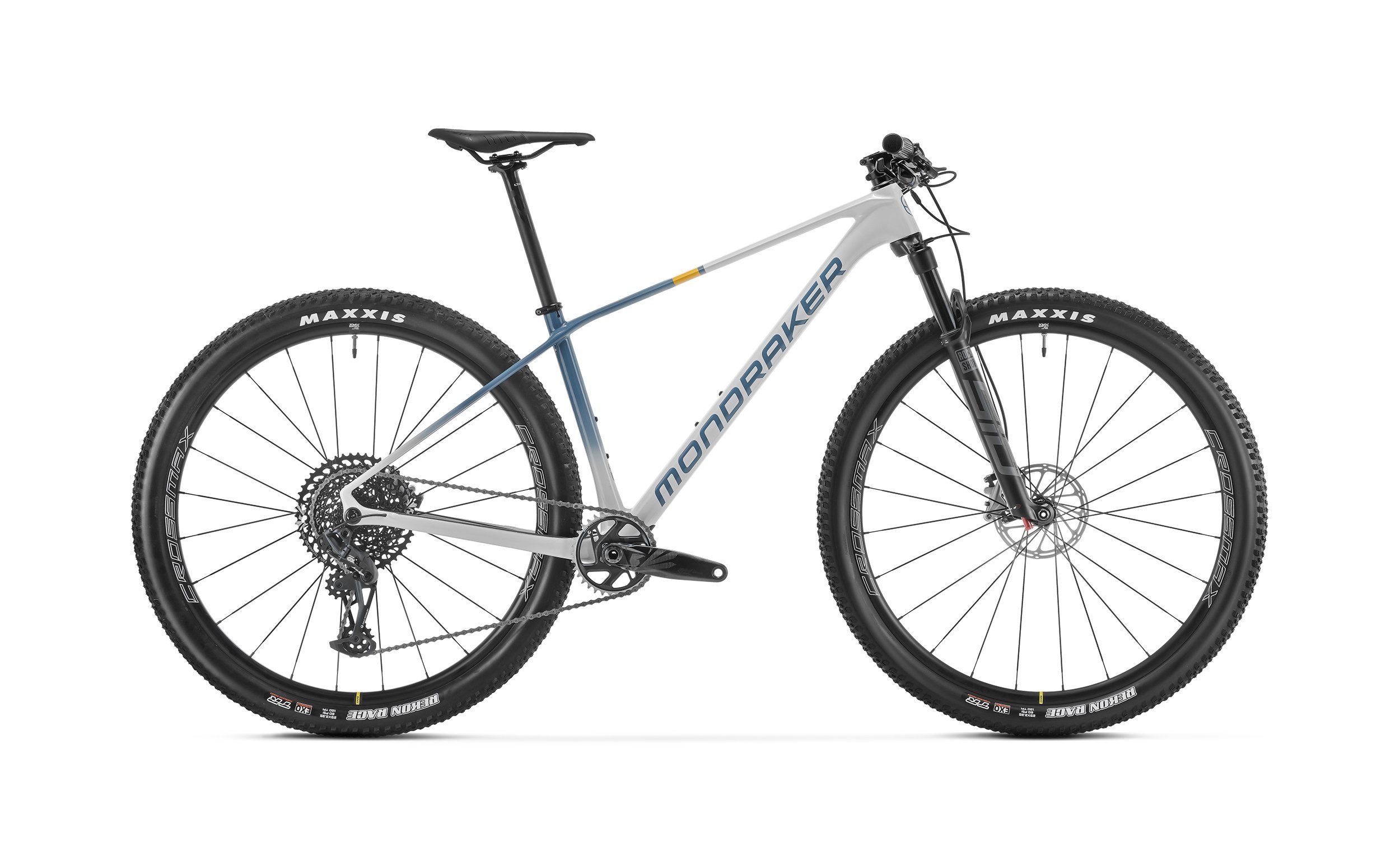

Mondraker PODIUM - Bunker Grey

Frame

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Shock settings

Fork

Rockshox SID SL Base RL 2P Remote 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload

Fork remote
            RockShox TwistLoc Base FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock

Headset

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm

Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on, 135mm

Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm

Saddle

Fizik Antares R7

Front brake

Rear brake

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level Bronze, tools-free reach adjust, lever pivot bushings

Rims

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

         Mavic, Boost 15x110mm, IS 6 bolts

Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

Front tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Rear tire

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52

Rings

34T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-50T, 12s

Weight
