Derailleur hanger
Sram UDH

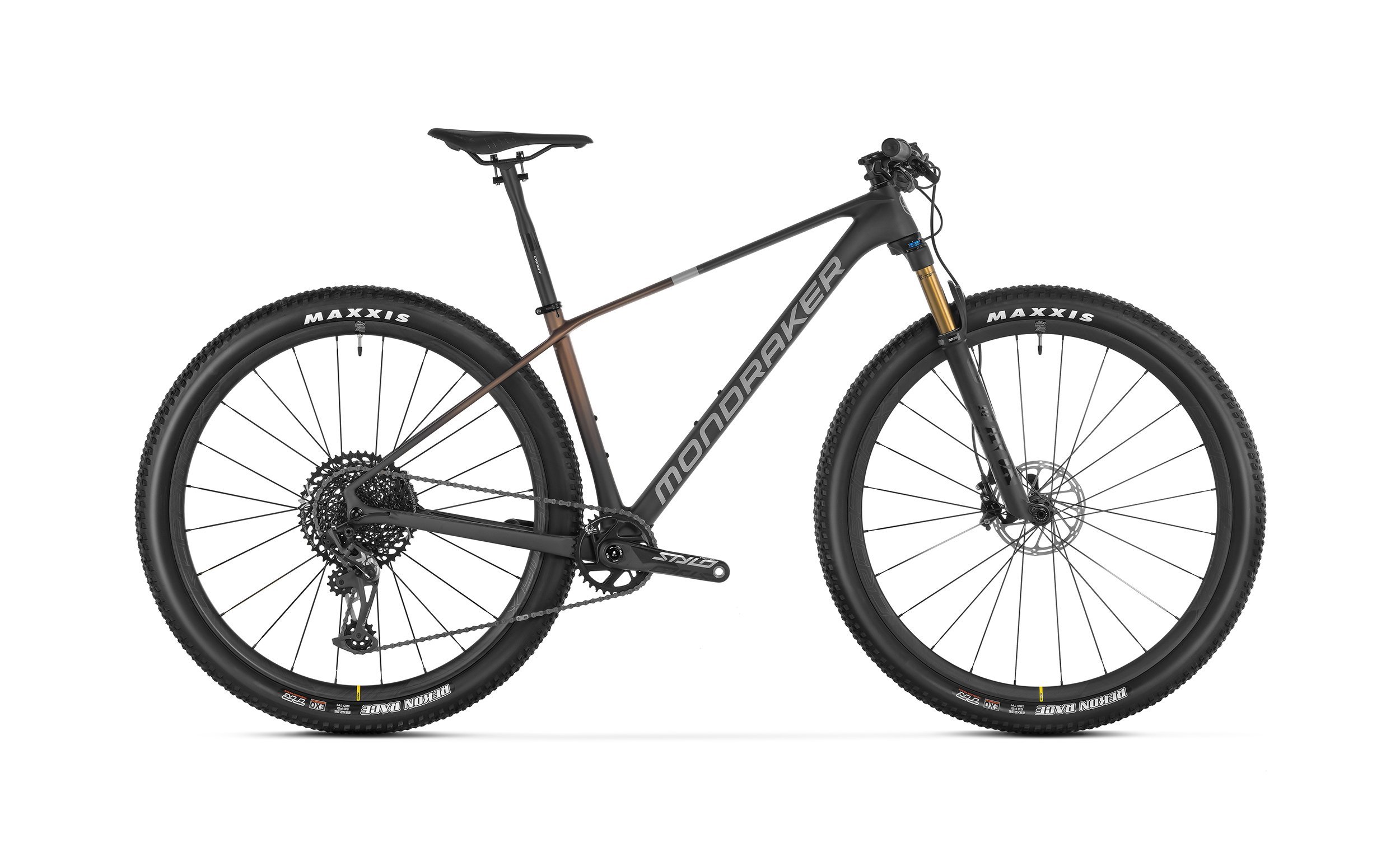

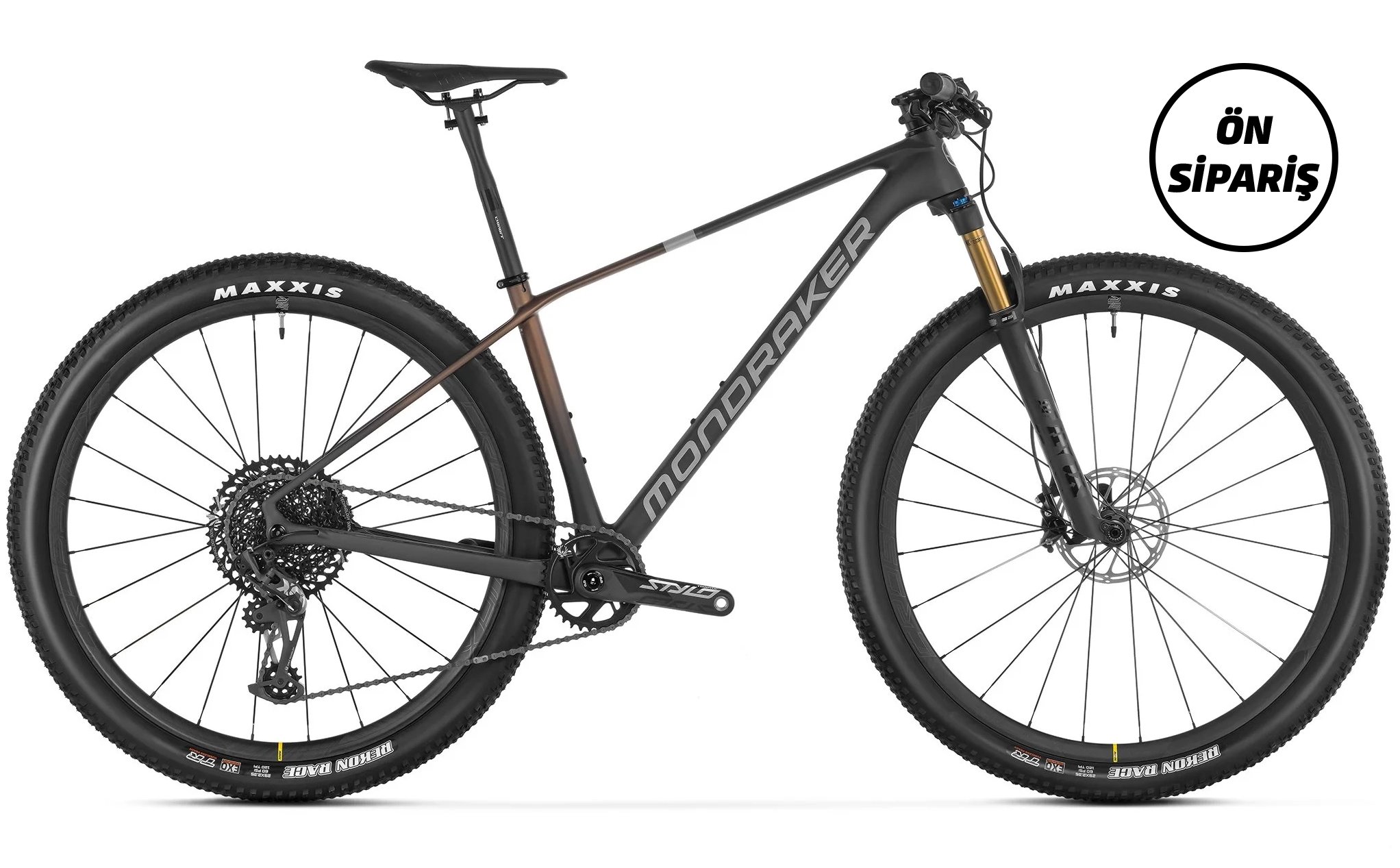

Mondraker PODIUM R - Bronze
Stok Kodu : 010.24058
0,00 TL
Mondraker PODIUM R - Bronze
Frame
Fork remote
Fox single pull
Front hub
Rear tire
Crankset
Rings
Bottom bracket
Chain
Rear derrailleur
Shift levers
Casette
Weight
FramePodium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes
S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Fork
Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Fork remoteFox single pull
Headset
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm
Handlebar
Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Saddle
Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Front brake
Sram Level Silver 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake
Sram Level Silver 2P Stealth, flatmount 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Level Silver, tools-free reach adjust, lever pivot bearings
Rims
Mavic CrossMax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Front hub Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Front tire
Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tireMaxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
CranksetSram Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings34T, CNC-machined alloy, X-SYNC 2
Bottom bracketSram DUB BSA, sealed bearings, 73mm
ChainSram SX Eagle, 12s, Powerlock
Rear derrailleurSram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2
Shift leversSram Trigger GX Eagle, 12s, X-Actuation 1:1
CasetteSram XG-1275, 10-50T, 12s
Weight9,3 kg
