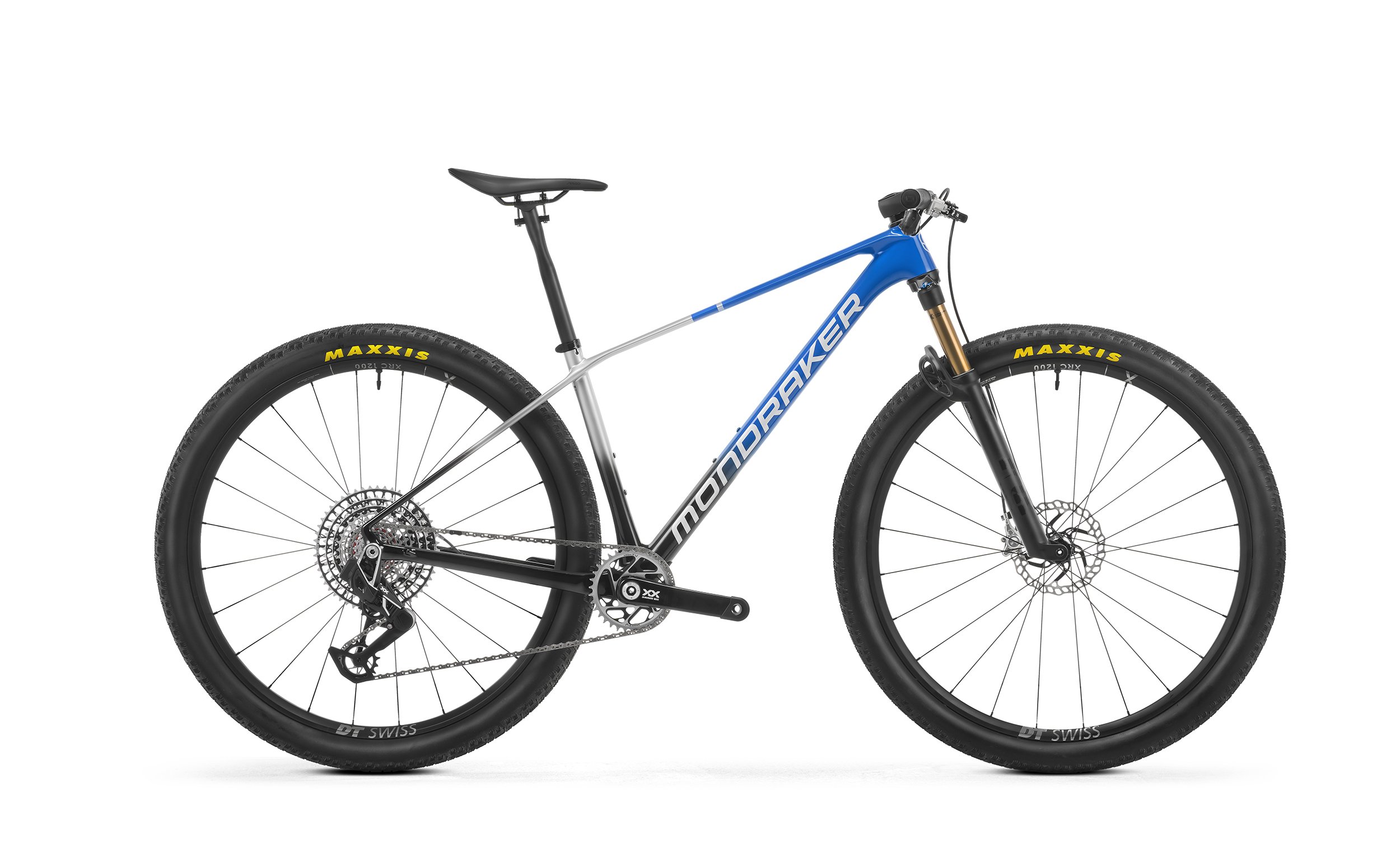

Mondraker PODIUM RR SL - Carrera Blue

Frame

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Fork

Fox 32 Step Cast Float SL Factory Kashima, GRIP SL, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload

Fork remote


Headset

Onoff IS42/IS52, 1-1/8", 1.5" head tube, sealed bearings

Stem

OnOff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise

Handlebar

Grips

Ergon GXR

Seatpost

Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm

Saddle

Fizik Vento Argo 00 Carbon

Front brake

Rear brake

Trickstuff Piccola Carbon, 7075 T6 CNC alloy caliper. 160mm Galfer Wave Centerlock rotor.

Brake lever

Trickstuff Piccola Carbon, 7075 T6 CNC alloy body with carbon lever, lever pivot bearings.

Rims

DT Swiss XRC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes

Spokes

DT aerolite® Straightpul

Front hub

DT 180, Boost 15x110mm, IS 6 bolts

Rear hub

DT 180, Boost 12x148mm, 36T Ratchet EXP system, Center lock, XD freehub

Front tire

Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead

Rear tire

Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead

Crankset

Sram XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Rings

34T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram XX SL Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram XX SL Eagle AXS, T-Type, 12s

Shift levers

Sram Eagle AXS Pod Ultimate, 12s

Casette

Sram XS-1299, 10-52T, T-Type, 12s

Weight
