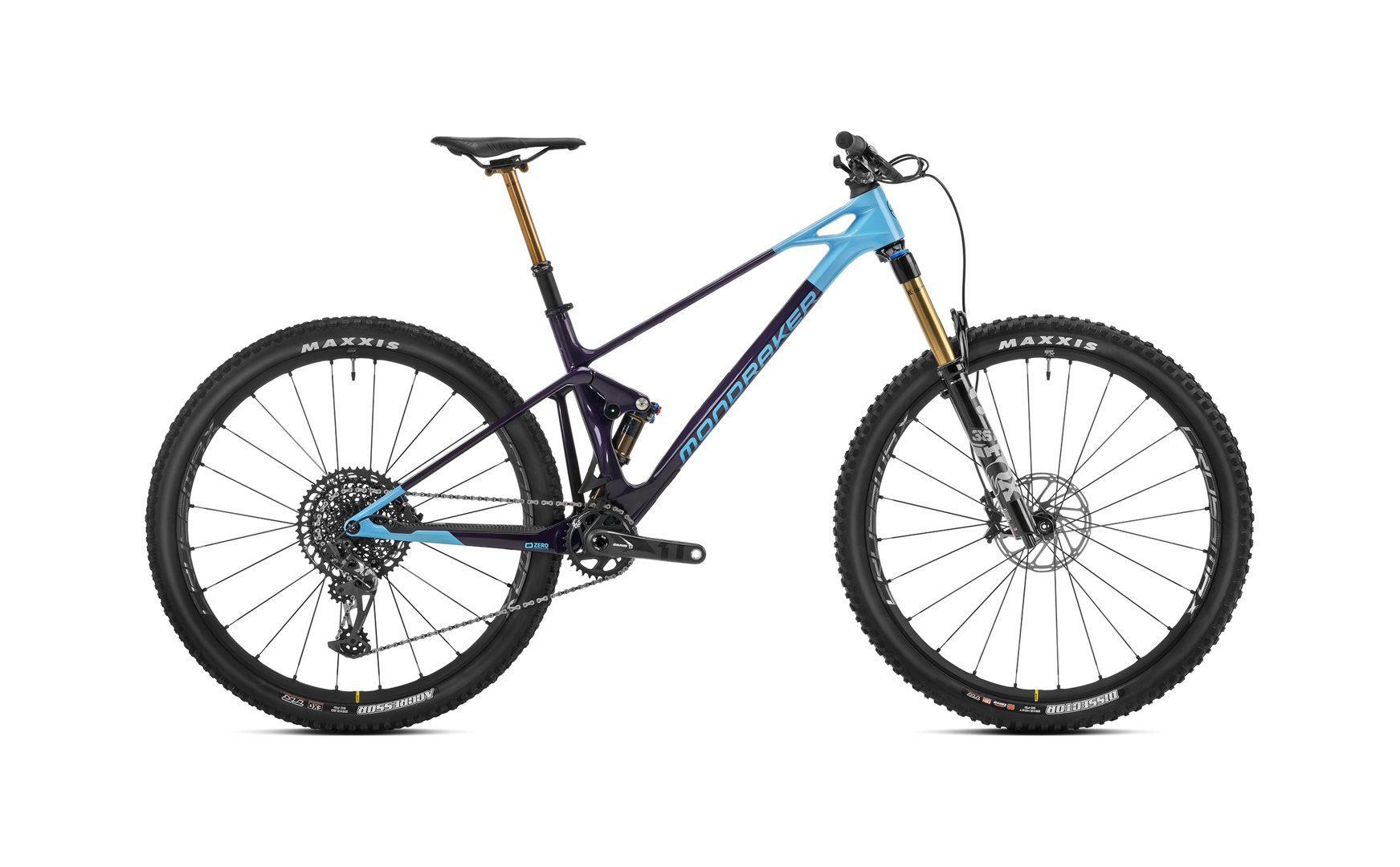

Mondraker RAZE CARBON RR - Deep Purple

Frame

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 500mm

Rear shock

Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

Light compression, light rebound, air volume spacer 0.6

Fork

Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem

ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

ONOFF Desert, 1lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

Saddle

Fizik Antares R7

Front brake

Rear brake

Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram G2 RS, SwingLink, tool-free reach adjust

Rims

Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

Spokes

24 straight-pull double butted spokes

Front hub

Infinity hub, Boost 15x110mm, IS 6 bolts

Rear hub

Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

Front tire

Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire

Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset

Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram GX Eagle, 12s, Powerlock

Rear derrailleur

Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-52T, 12s

Weight
