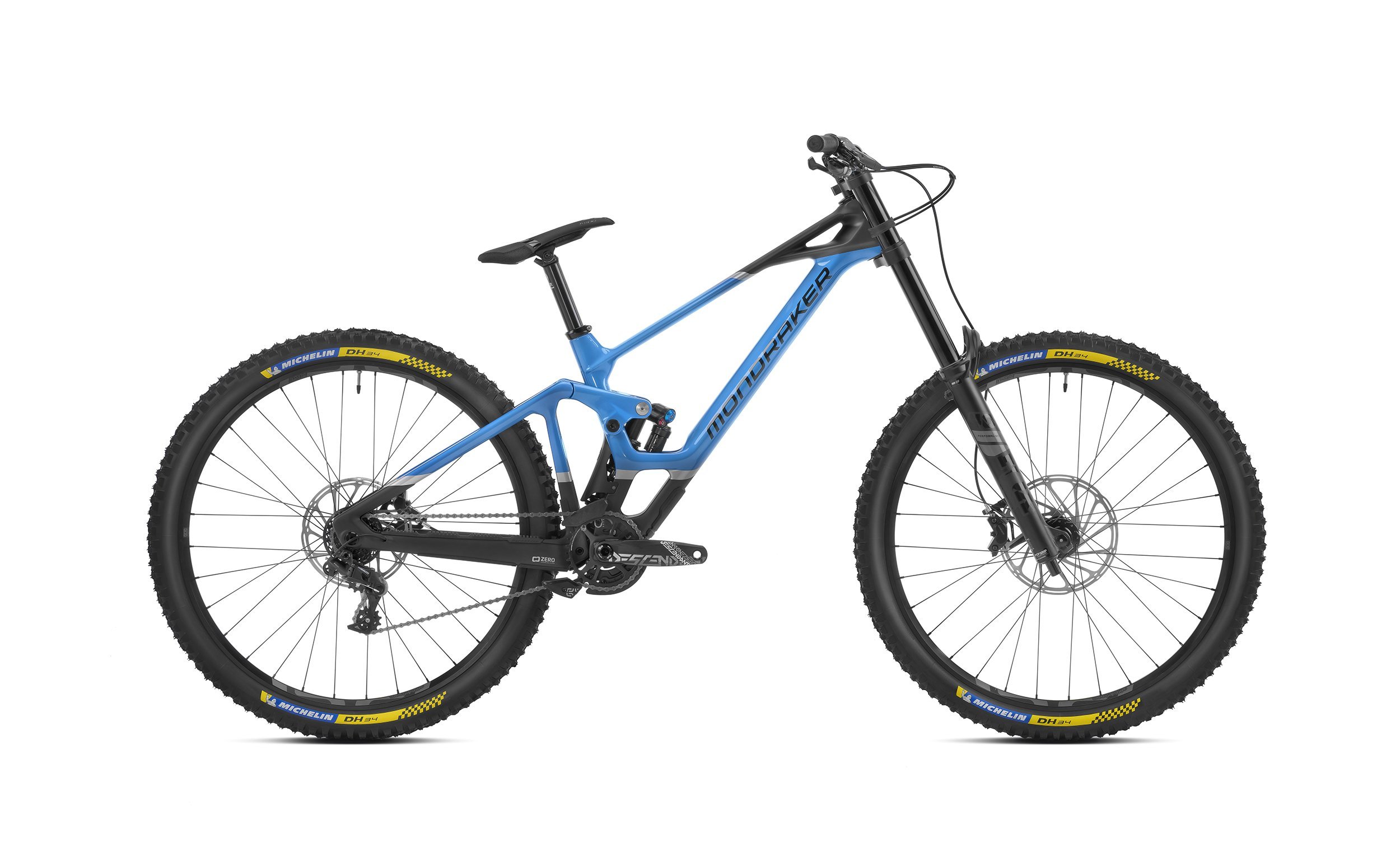

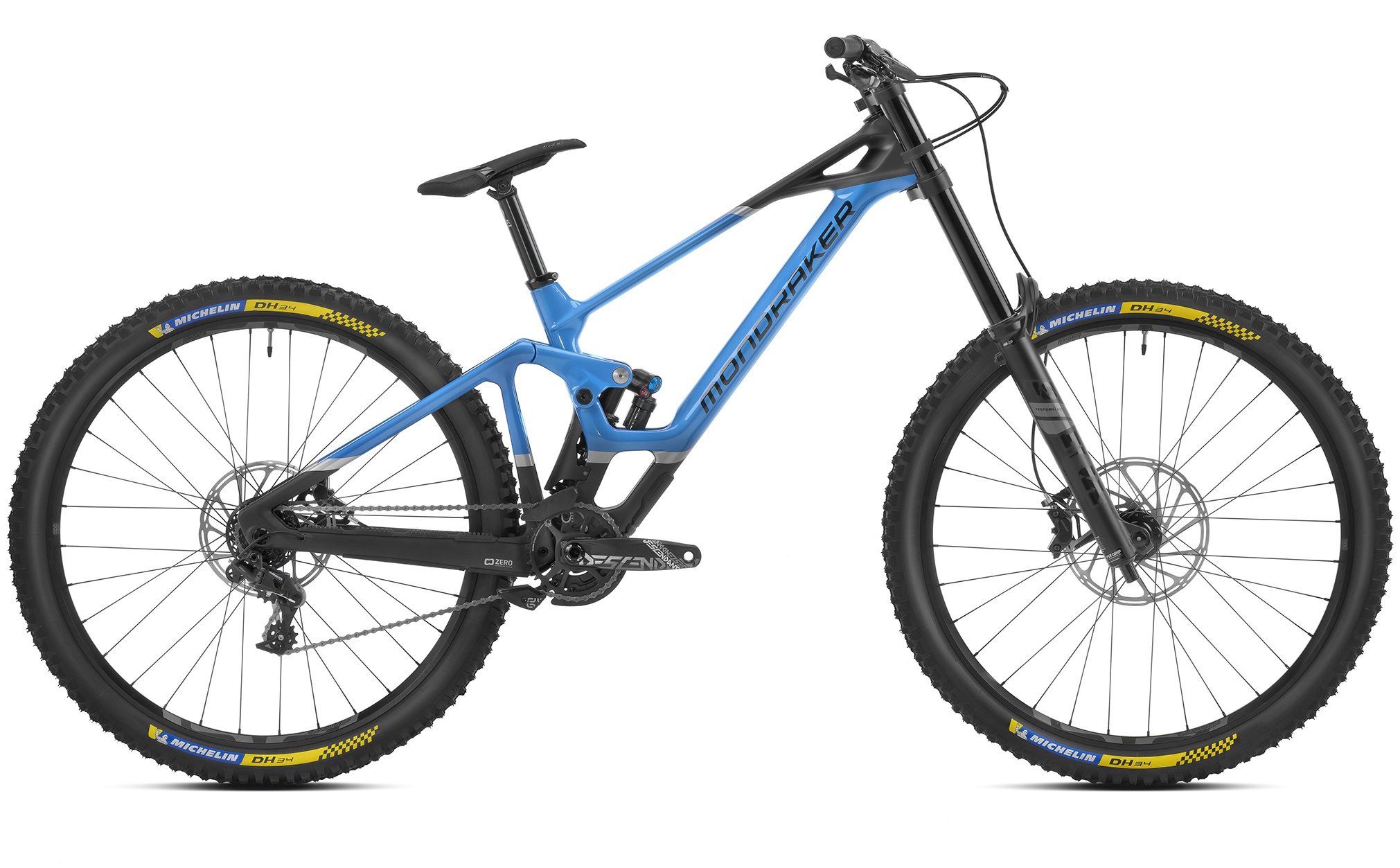

Mondraker SUMMUM Carbon R - Marlin Blue

Mondraker SUMMUM Carbon R - Marlin Blue

Frame

Sizes

S / M / L / XL 29"

Rear shock

Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs

Fork

Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload

Headset

Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm

Stem

Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer

Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Desert, 1lock-on, 135mm

Seatpost

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

Saddle

SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides

Front brake

Rear brake

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Rims

e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub


Front tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

Rear tire

Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead

Crankset

Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5

Rings

34T, steel, X-SYNC

Bottom bracket

Sram DUB BSA, sealed bearings, 83mm

Chain

Sram PC1110 11s, Powerlock

Front derrailleur

E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

Rear derrailleur

Sram GX DH, 7s, medium cage, X-actuation 1:1

Shift levers

Sram trigger GX DH 7s, X-actuation 1:1

Casette

Sram PG 720 11-25T, 7s

Derailleur hanger

Mondraker M075

Weight

16,9 kg

Others

*Optional geometry kit: +-1º / +-2º headset cups
