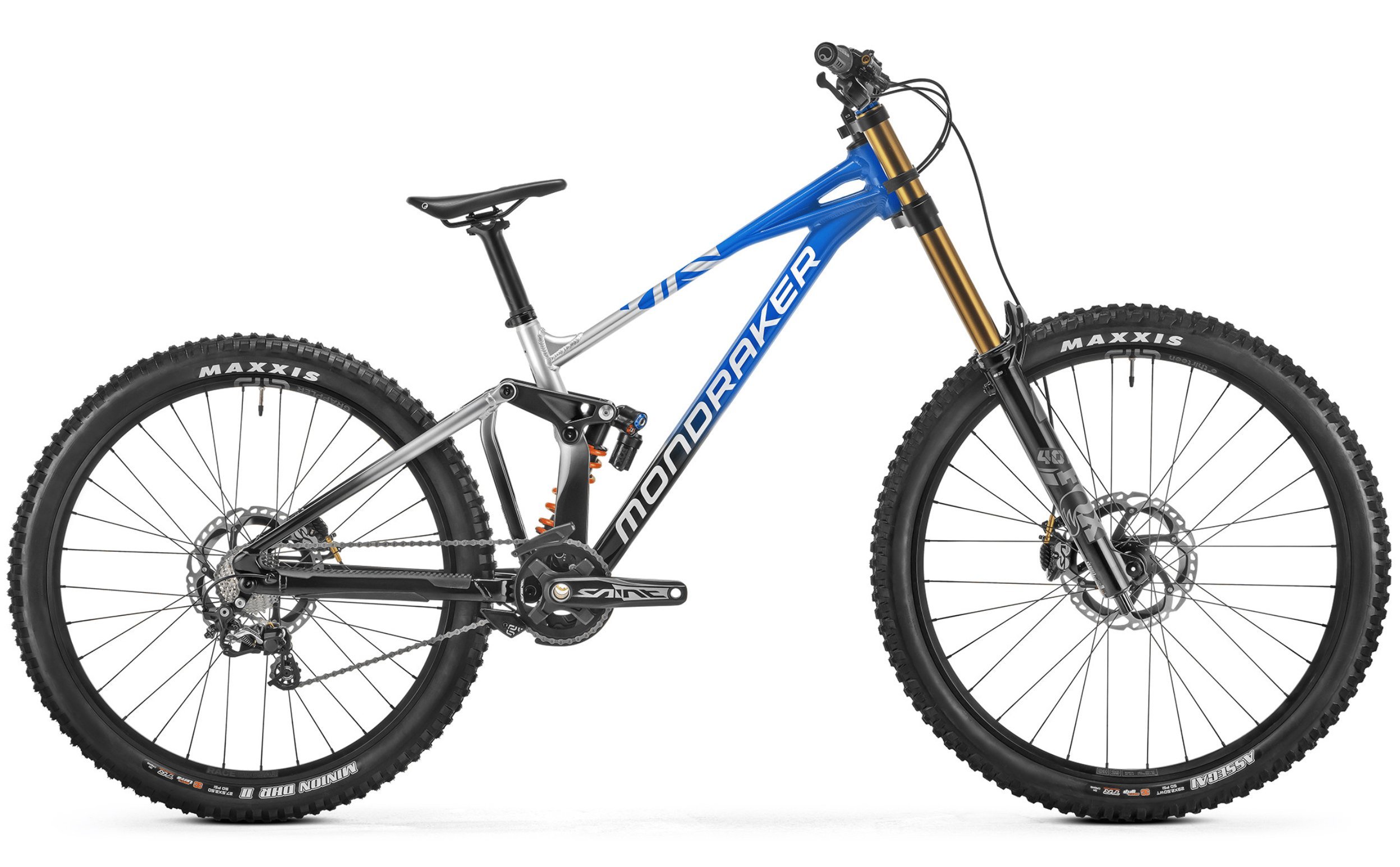

Mondraker SUMMUM RR Mullet - Carrera Blue

Frame

Sizes

S / M / L / XL MX

Rear shock

Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs

Fork

Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm

Stem

Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Ergon GDH Team black

Seatpost

Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

Saddle

Ergon SM10 DH Black

Front brake

Rear brake

Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

Brake lever

Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust

Rims

e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm

Rings

36T, aluminum, BCD 104

Bottom bracket

Shimano 83mm

Chain

Shimano HG95, 10s

Rear derrailleur

Shimano Saint RD-M820-SS, 10s, Shadow+, short cage

Shift levers

Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release

Casette

Shimano CS-HG500-10, 11-25T, 10s
