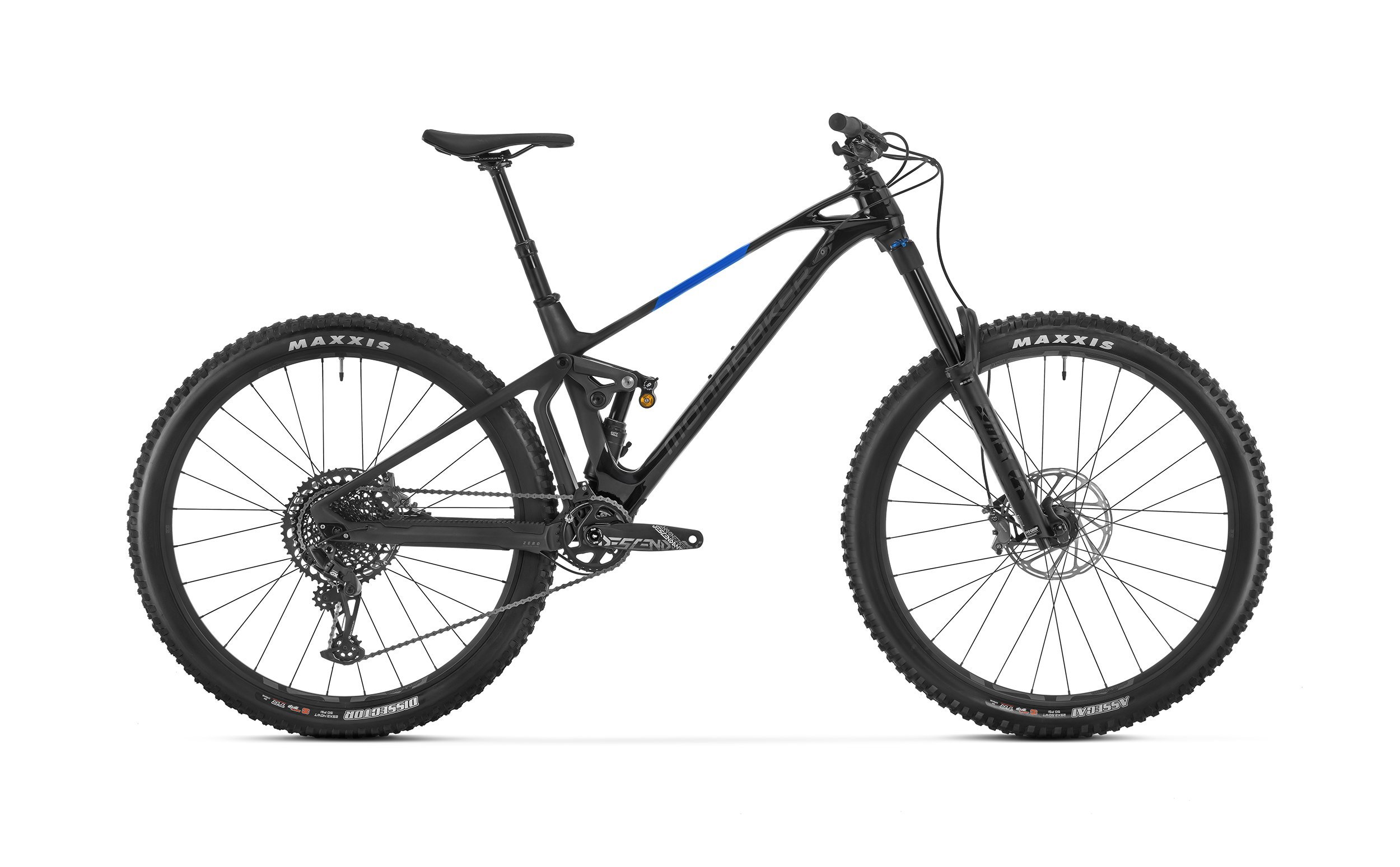

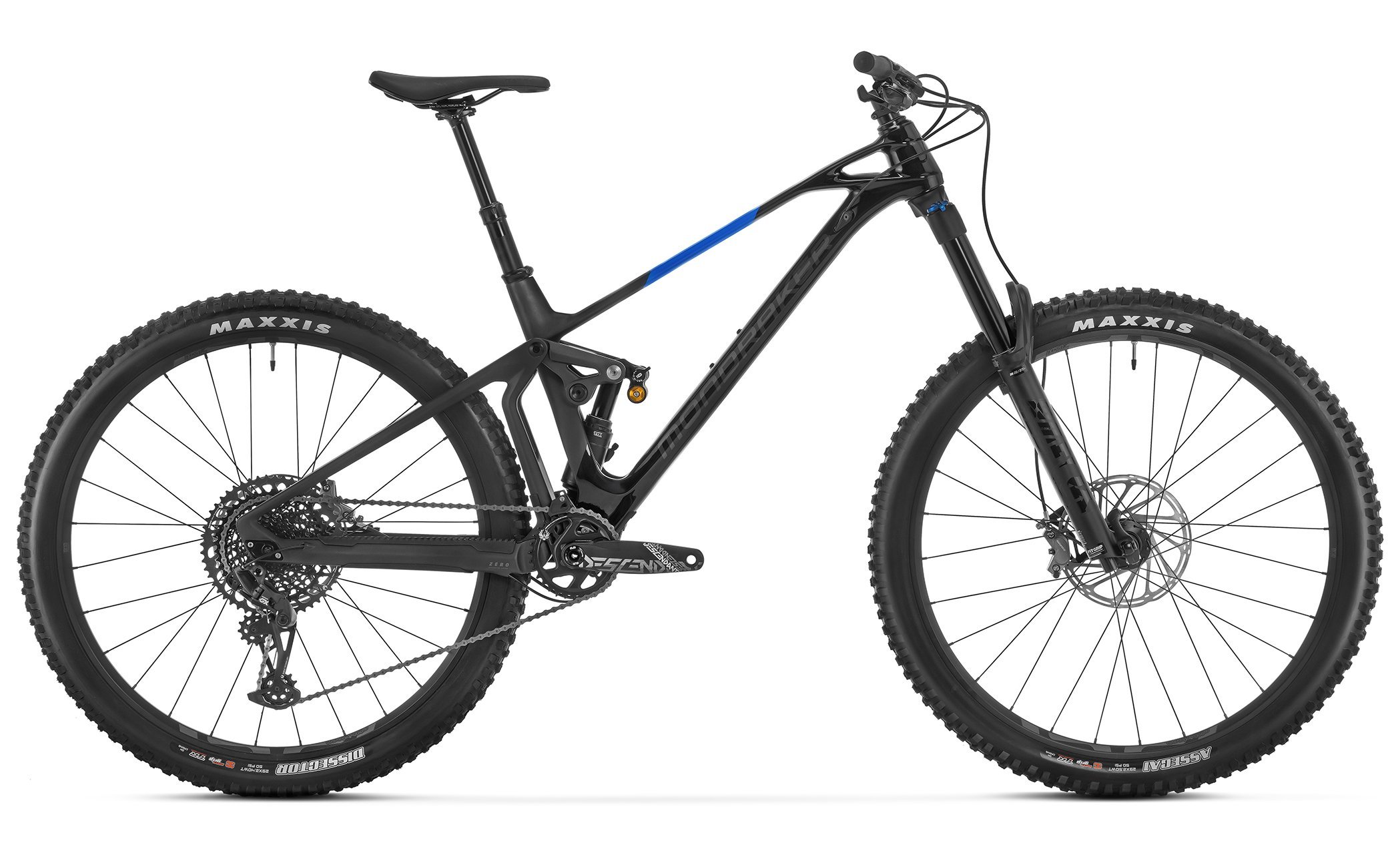

Mondraker SUPERFOXY Carbon R - Black

Mondraker SUPERFOXY Carbon R - Black

Frame

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

Fork

Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset

ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

ONOFF Desert, 1lock-on, 135mm

Seatpost

ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Rear brake

Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Code R, tool-free reach adjust

Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub


Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Casette

Sram XG-1275, 10-52T, 12s

Derailleur hanger

Mondraker M071

Weight

15,6 kg

Others

*Optional geometry kit: 0º headset cups and chainstay adaptor for 450mm CS length
