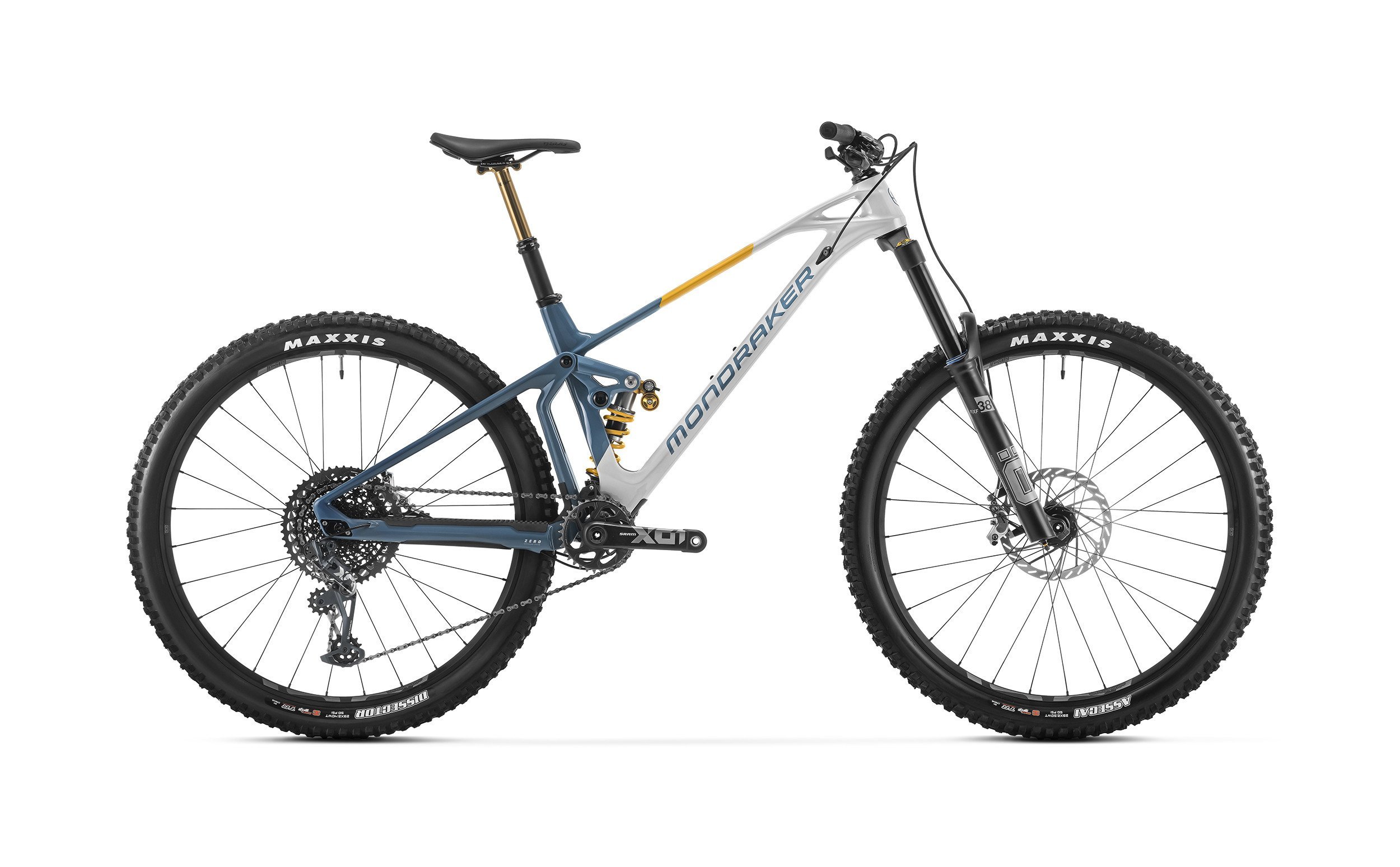

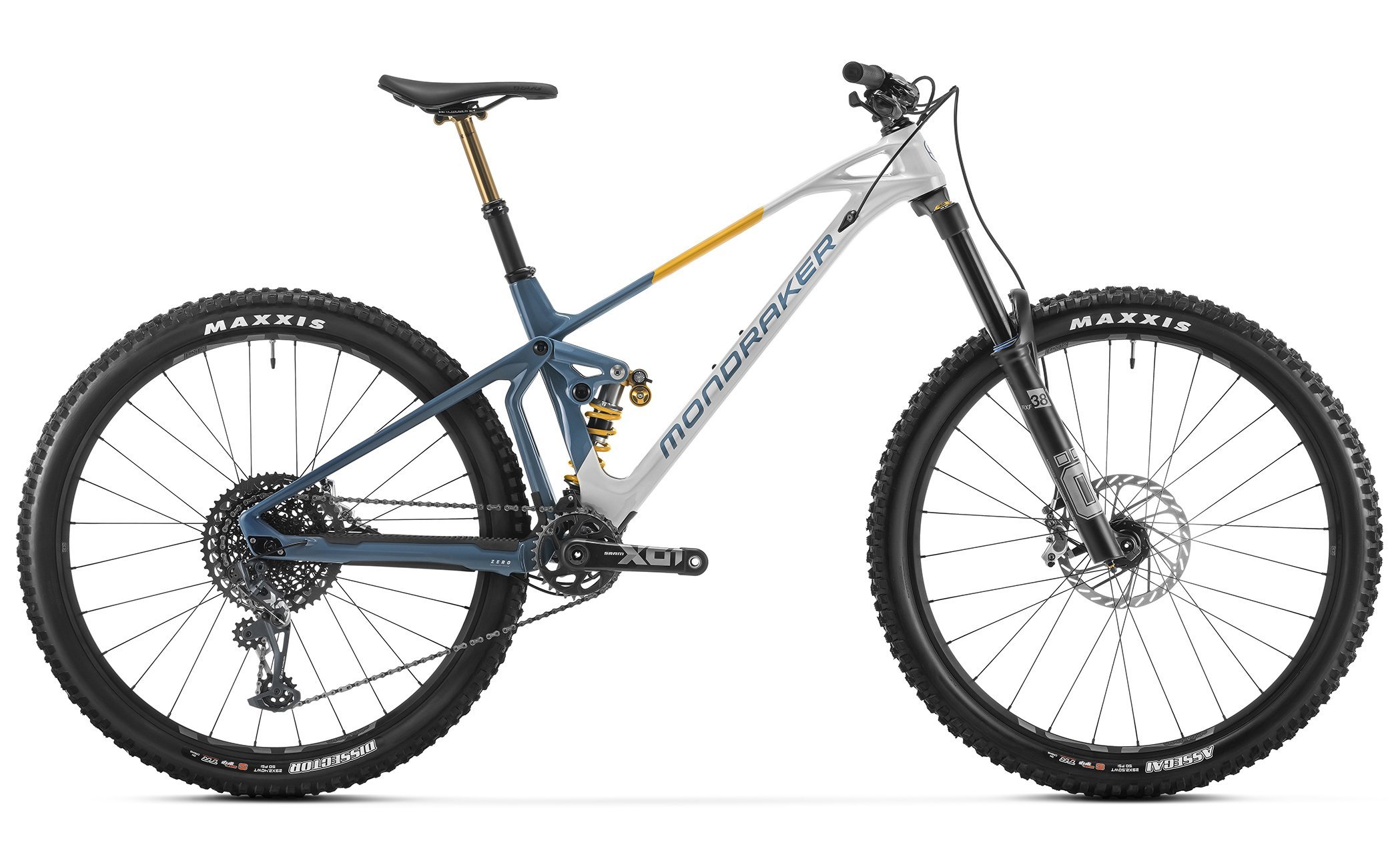

Mondraker SUPERFOXY Carbon RR - Bunker Grey
Sizes
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock
Öhlins TTX 22M.2 NH Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake
Rear brake
Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims
e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts Rear hub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
32T, CNC-machined alloy, X-SYNC 2
Sram DUB BSA, sealed bearings, 73mm, superboost
Sram GX Eagle, 12s, Powerlock
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
Sram XG-1275, 10-52T, 12s
Mondraker M071
15,8 kg
*Geometry kit included: 0º headset cups and chainstay adaptor for 450mm CS length
