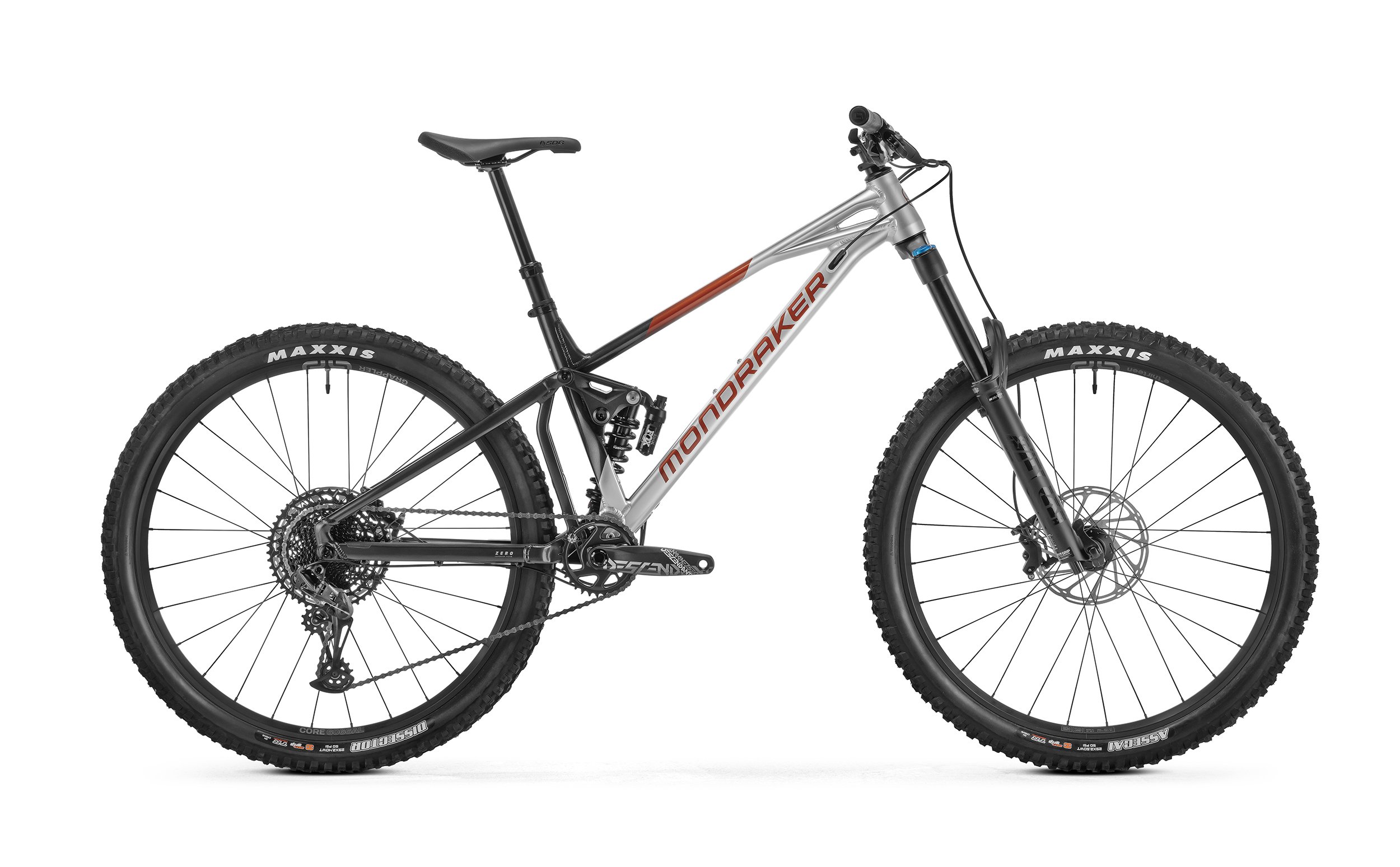

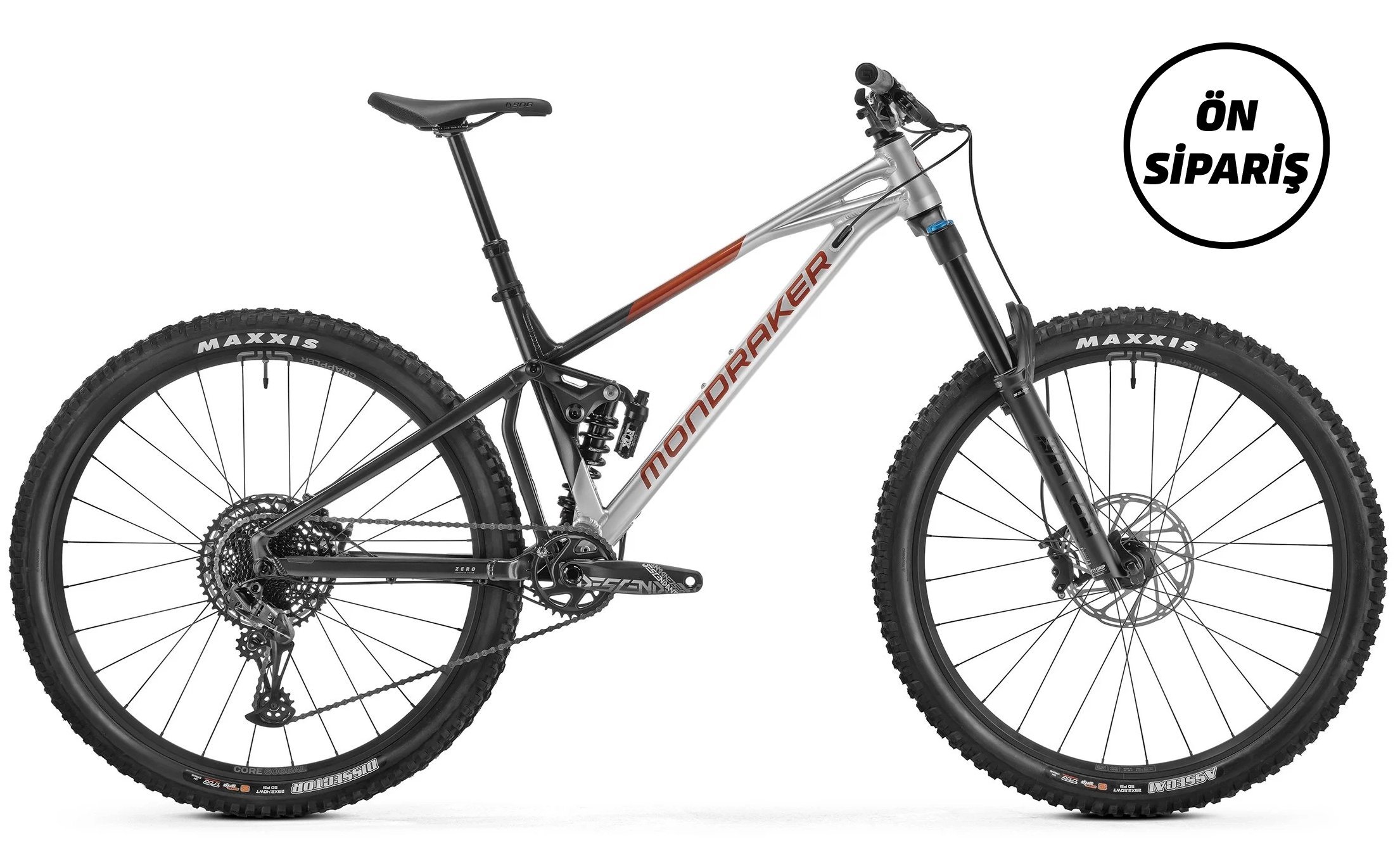

Mondraker SUPERFOXY - Racing Silver

Frame

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Fox DHX Performance, 205x65mm. Settings: 2P compression, low-speed rebound, spring preload. Trunnion top mount, 22,2x10mm bottom bushings

Shock settings

C40 compression, RL50 rebound, LMM, B40. Spring rate: S size 350 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs

Fork

Fox 38 29 Float RHYTHM 170mm, GRIP damper, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, rebound adjust, air preload

Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Rear brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, All sizes: 170mm, CL 56´5

Rings

32T, CNC-machined steel, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, superboost

Chain

Sram DUB BSA, sealed bearings, 73mm, superboost

Rear derrailleur

Sram SX Eagle,12s

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1210, 11-50T, 12s

Weight
