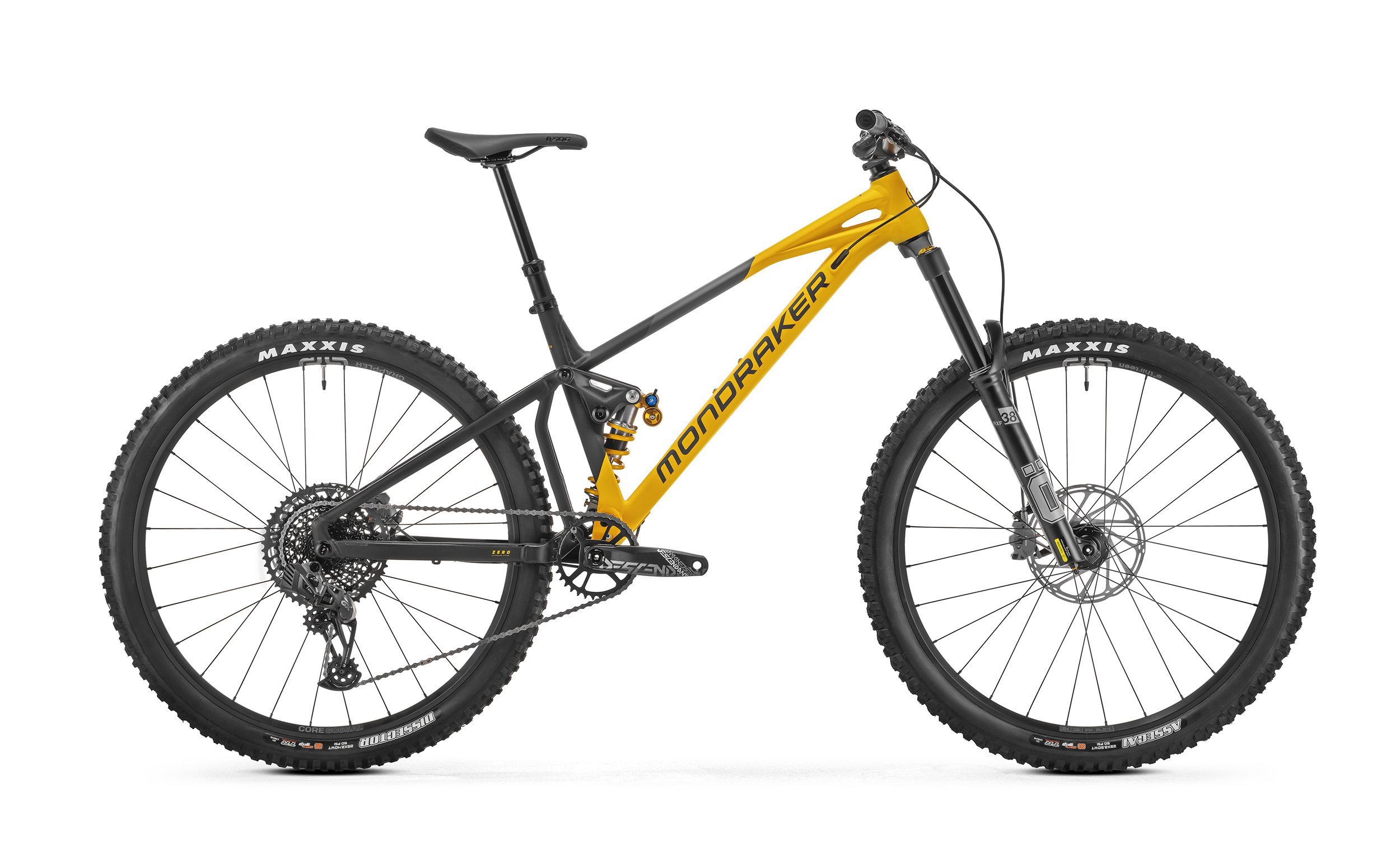

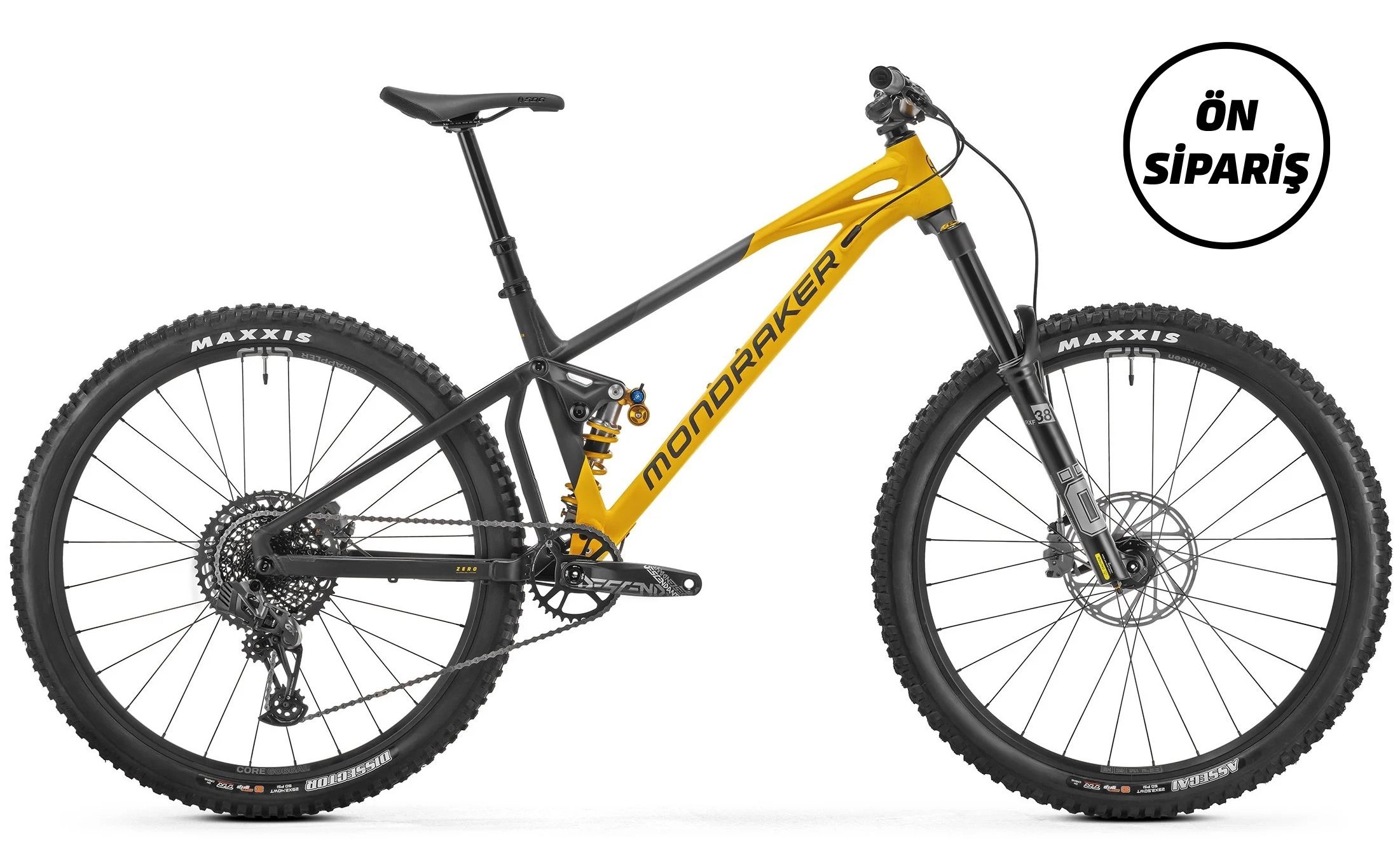

Mondraker SUPERFOXY XR - Dense Yellow

Frame

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs

Fork

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

Rear brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims

e*thirteen Grappler Core, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, All sizes: 170mm, CL 56´5

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, superboost

Chain

Sram NX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle,12s

Shift levers

Sram Eagle AXS Pod, 12s

Casette

Sram XG-1275, 10-52T, 12s

Weight

17,2 kg
