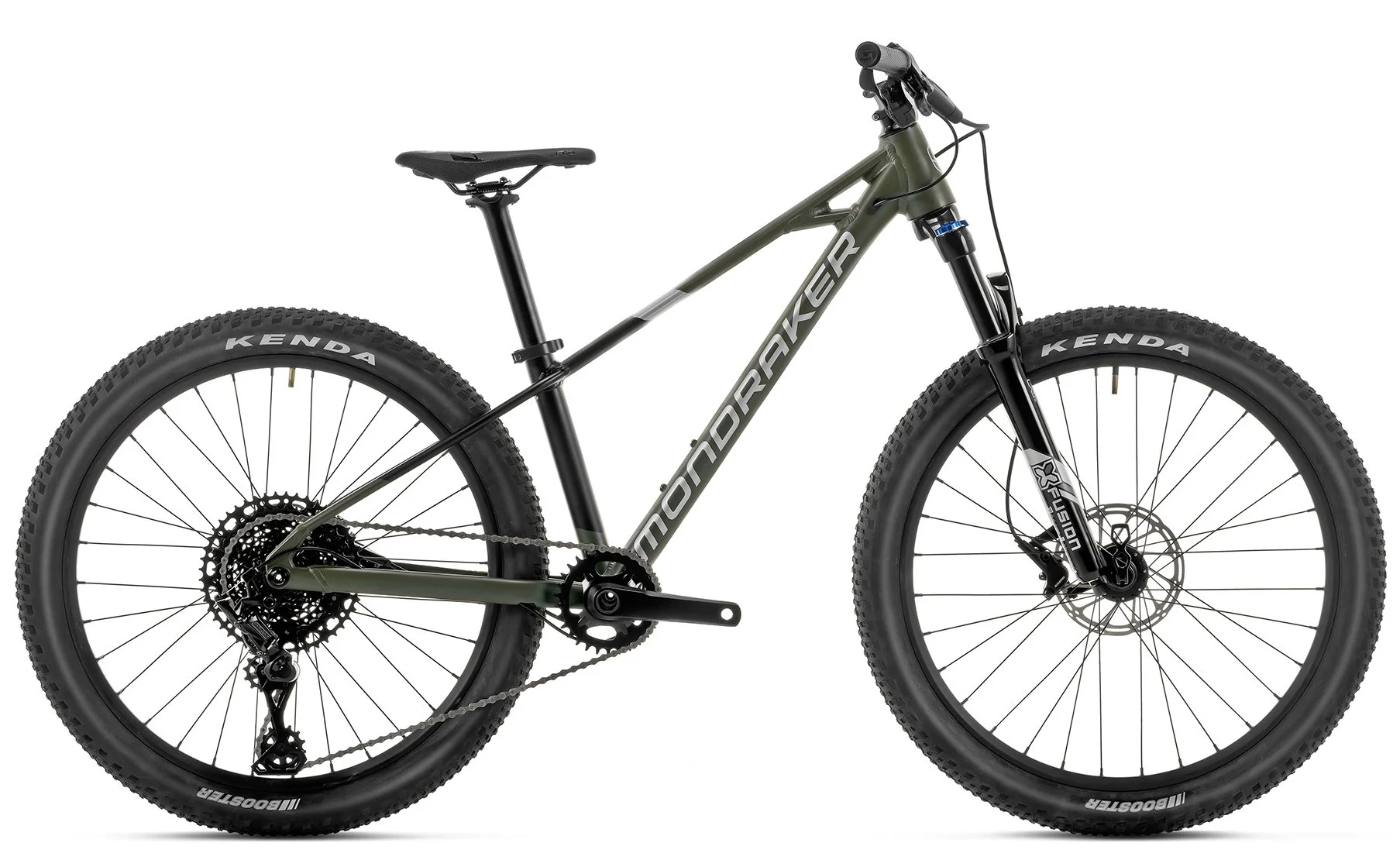

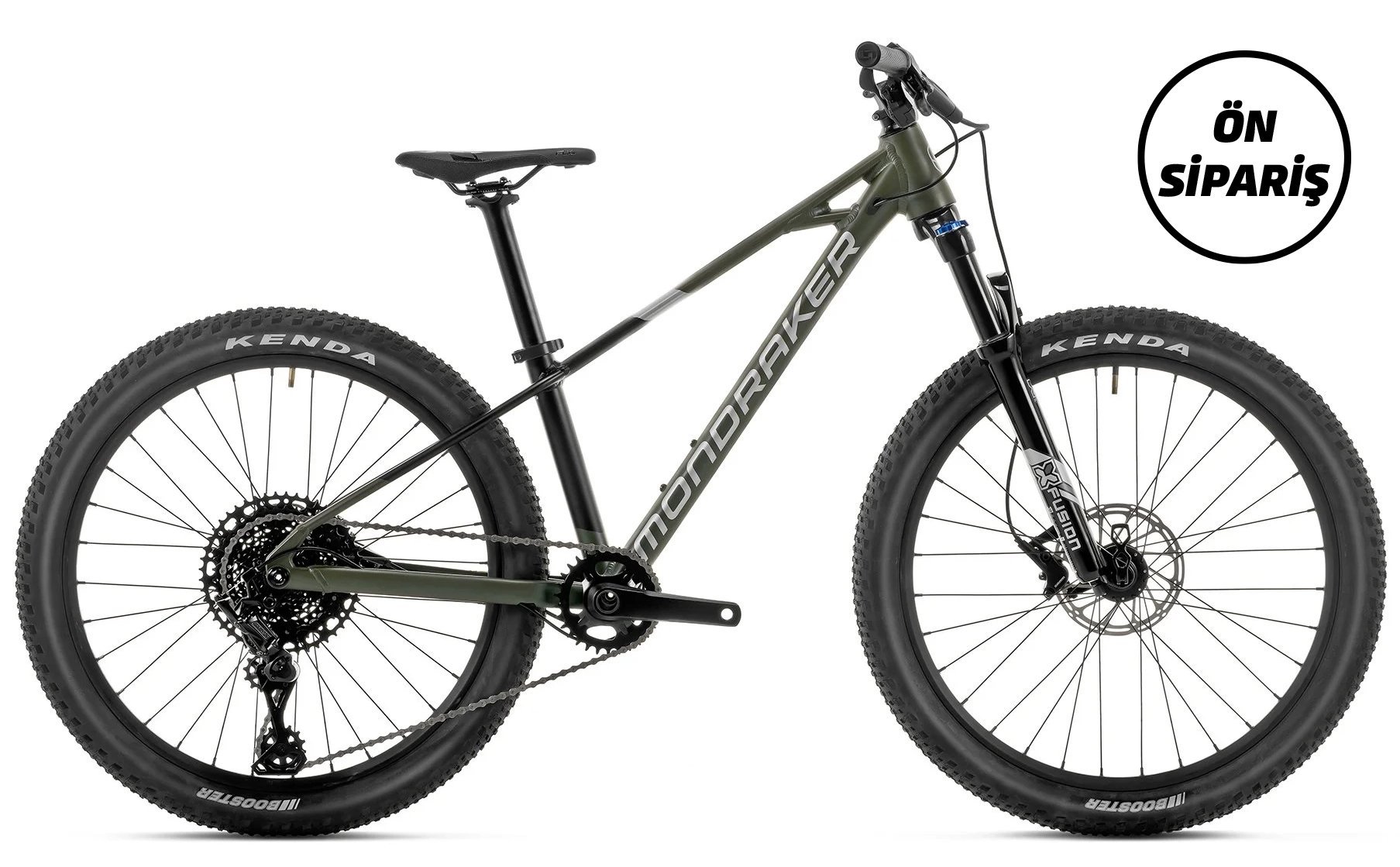

Mondraker TRICK 24 - Army Green

Frame

Sizes

One size 310mm

Fork

X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset

FPD Dozer tapered internal 1048AS, 1-1/8" 1-1/2 15mm top cover + TJ3 top cap

Stem

MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 40mm

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on

Seatpost

MDK XC, 6061 T6 alloy, diameter 31.6mm, length 300mm, offset 0mm

Saddle

SDG Fly JR

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

DA210FS02, 15x100mm, sealed bearings, IS 6 bolts

Rear hub

DA210RSRA01 12x142mm, sealed bearings, IS 6 bolts, HG freehub

Front tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead

Rear tire

Kenda Booster 24x2.4 single compound 30TPI, wire bead

Crankset

Samox DM 30T steel, 140mm

Rings

30T, steel

Bottom bracket

BSA, 73mm

Chain

Sram PC-1031, 10s, Powerlock

Rear derrailleur

MICROSHIFT ADVENT X-RDM6205GM 1X10

Shift levers

MICROSHIFT ADVENT SL-M9505-R 10s

Casette

MICROSHIFT CS-G104 11-48 BLACK

Weight
