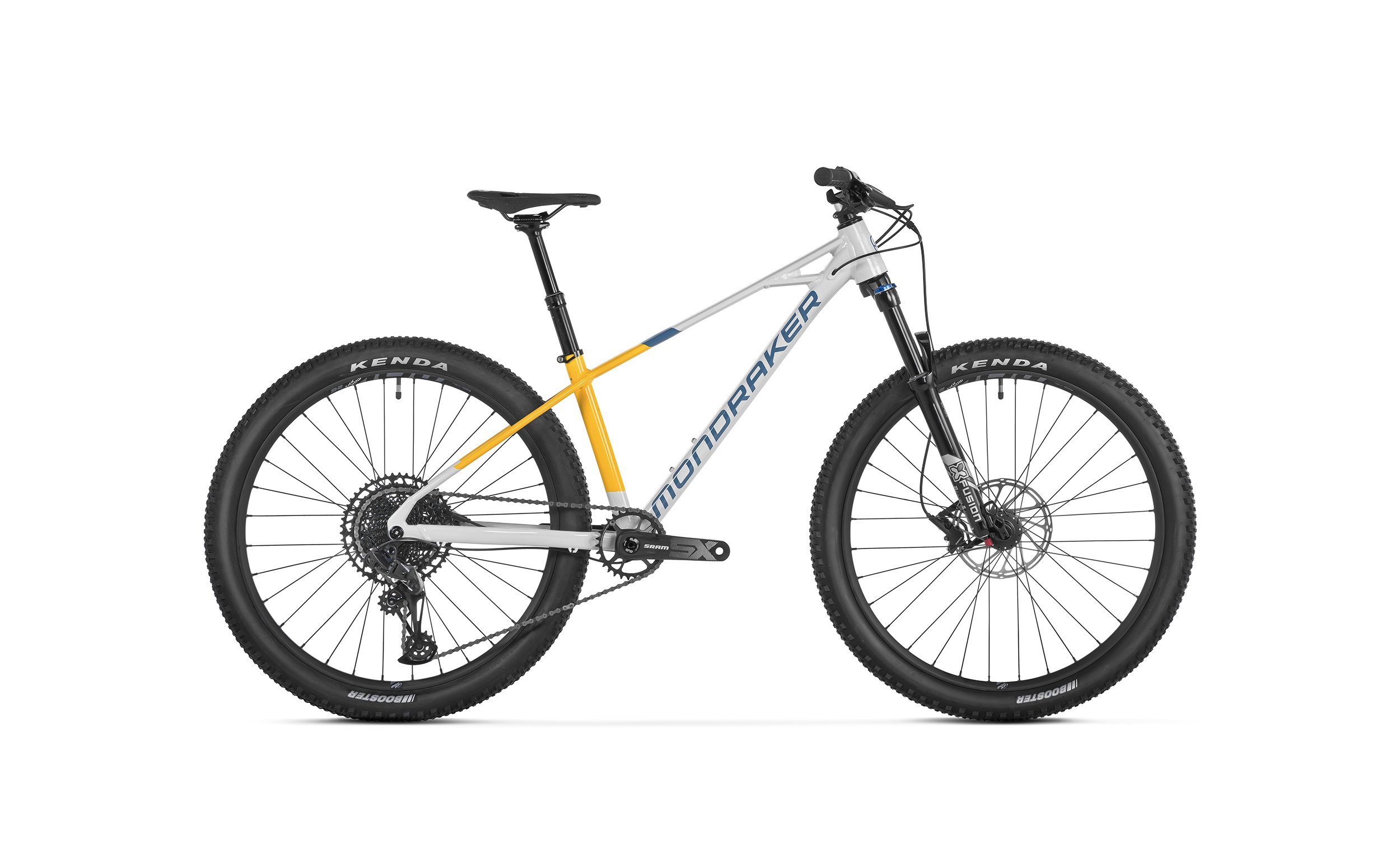

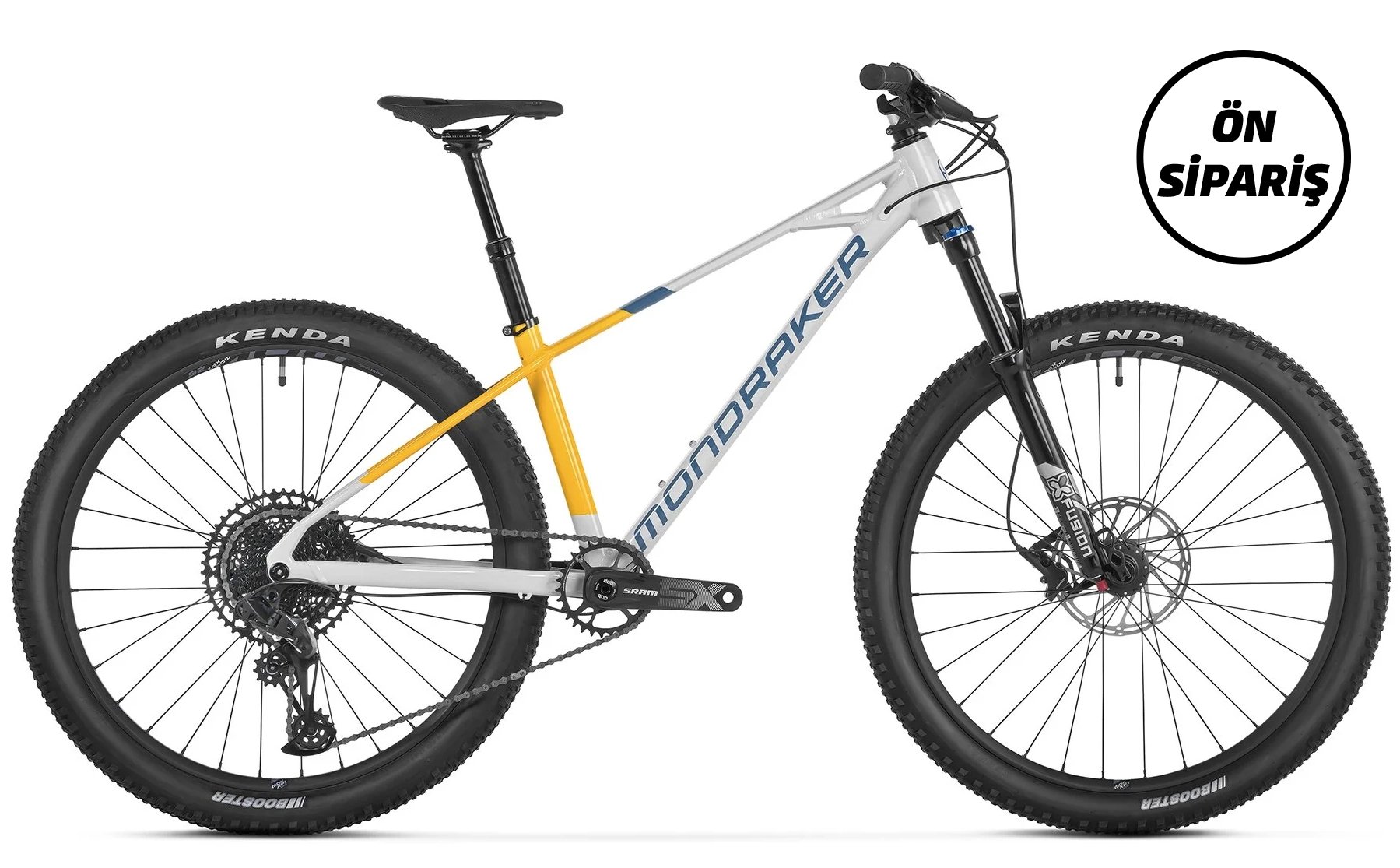

Mondraker TRICK 26 - Bunker Grey

Frame

Sizes

One size 350mm

Fork

X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Fork remote


Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0º, length: 45mm

Handlebar

MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips

Onoff Twin, 1lock-on

Seatpost

Onoff Pija dropper internal, diameter 31.6x100mm

Saddle

SDG Fly JR

Front brake

Rear brake

Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

Sram Level, tooled reach adjust, lever pivot bushings

Rims

MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts

Rear hub

DA210RSRA01 12x142mm, cup & cone ball bearings, IS 6 bolts, HG freehub

Front tire

Kenda Booster 26x2.4 single compound 30TPI, wire bead

Rear tire

Kenda Booster 26x2.4 single compound 30TPI, wire bead

Crankset

Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm

Rings

30T, steel, X-Sync

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Weight
